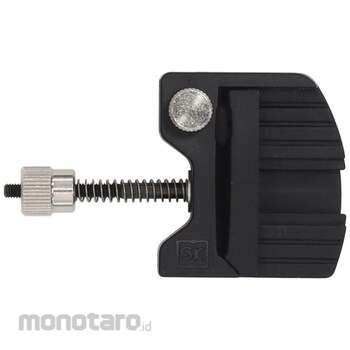

A stopper that can hold the measuring position of the taper gauge. Effective in measurement environments where confirmation of the measurement position is difficult. Parallax is prevented by reading the scale of the gauge and the end face of the stopper. The holding force of the taper gauge can be adjusted by the tension of the spring. By using taper gauges, stoppers (2 sets each), and a 15 cm scale, simple center-to-center measurement of holes can be easily performed.
Stopper for taper gauge, for holding measuring position
SK (Niigata Seiki) Taper Gauge Stopper
#Grup produk P113732328
Spesifikasi
| Accuracy (mm) | When measuring center distance of hole: 0.5 |
|---|---|
| Applicable Dimensions (mm) | Scale: Metal ruler 150 type (length 150 x width 15 x thickness 0.5) |
| Applicable Hole Diameter (Φmm) | When measuring hole center distance: 2-14 |
| Mass of Main Unit (g) | 16 |
| Material | Body: ABS |
| Measuring Range (mm) | When measuring the center distance of a hole: 60-140 center distance |
| Range to Use (mm) | Taper Gauge: 1-14 |
| Suitable For | Taper gauge: Standard #700 type (measurement range 1-15mm, board thickness 1.0/1.5mm) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
A stopper that can hold the measuring position of the taper gauge. Effective in measurement environments where confirmation of the measurement position is difficult. Parallax is prevented by reading the scale of the gauge and the end face of the stopper. The holding force of the taper gauge can be adjusted by the tension of the spring. By using taper gauges, stoppers (2 sets each), and a 15 cm scale, simple center-to-center measurement of holes can be easily performed.Use
Stopper for taper gauge, for holding measuring positionUlasan Produk
