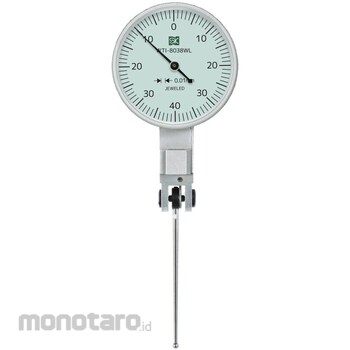

SK (Niigata Seiki) Dial Indicator

* Only WTI-80RL and WTI-80WL can be replaced with the stylus.

It is convenient for unevenness and straightness measurement in "narrow places" where dial gauges cannot be used. It is a long stylus type that can measure deep places that cannot be measured even with a normal dial indicator. The stylus is a super hard ball with high wear resistance, high hardness, scratch resistance, and a small coefficient of thermal expansion. To guarantee accuracy, it comes with an inspection table that shows the values at the time of inspection. Jewels are incorporated in each bearing. The scale plate is green.
* Measurement range (mm): 0.8 * Scale (mm): 0.01 * Return error (μm): 9 * Measuring force (N): 0.2 or less * Indication error for the entire measurement range (μm): 13 * Repeating accuracy ( μm): 3

For measuring displacement such as unevenness of a flat surface, good / bad mounting of a workpiece, touch of a shaft, and squareness.
