It is a staircase scale that makes it easy to see the scale. To guarantee accuracy, it comes with an inspection table that shows the values at the time of inspection. The limit needle is attached. A jewel bearing is used for the bearing part. The scale plate is green. Two types of back lids are included, a flat type and a type with ear fittings.
For measuring displacement such as unevenness of a flat surface, good / bad mounting of a workpiece, runout of a shaft, and squareness.

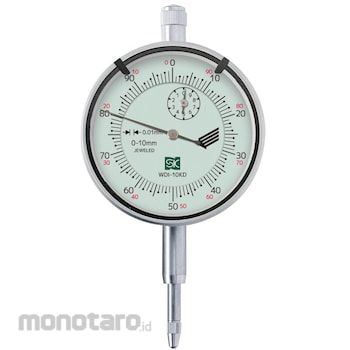

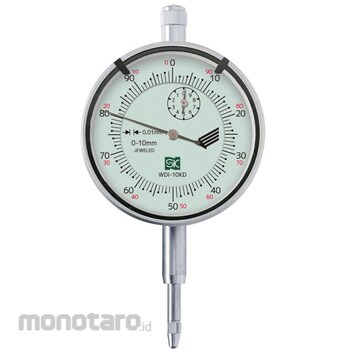

SK (Niigata Seiki) Smooth Scale Dial Gauge
#Grup produk P113731523
Spesifikasi
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
|---|---|
| Type | Standard |
| Type of Scale | ±0-100 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
It is a staircase scale that makes it easy to see the scale. To guarantee accuracy, it comes with an inspection table that shows the values at the time of inspection. The limit needle is attached. A jewel bearing is used for the bearing part. The scale plate is green. Two types of back lids are included, a flat type and a type with ear fittings.* Measurement range (mm): 10 * Scale (mm): 0.01 * Return error (μm): 5 * Measuring force (N): 1.5 or less * Long hand 1 rotation (mm): 1 * 1/10 rotation instruction error ( μm): 8 * Total measurement range indication error (μm): 20 * Repeat accuracy (μm): 5
Use
For measuring displacement such as unevenness of a flat surface, good / bad mounting of a workpiece, runout of a shaft, and squareness.Ulasan Produk
