High-end model S line series. It can be measured by the drive system by the timing belt + pulley and the smooth rotation by the handle with grip. Equipped with a work stopper that presses the front and back of the work, it is also possible to measure the circumferential runout (squareness of the end face) in the axial direction. An ultra-compact and long-hole clamp base that can be mounted on the stage of large measuring instruments. A roller for small diameters that supports workpieces with a diameter of less than 4 mm.
For measuring eccentricity by attaching your own indicator and electric micrometer
* Regarding accuracy, it is the manufacturer's measured value of 3 μm = Φ8 mm workpiece. * If the tip of the work is separated from the end face of the main roller, the runout will increase and cause measurement error. Therefore, use the length so that the reference part can be sufficiently sandwiched by the roller.

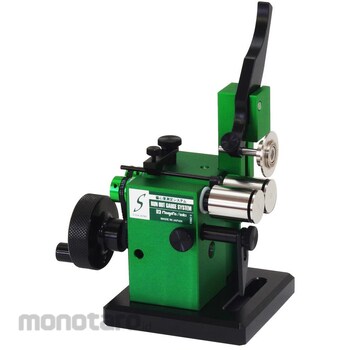

SK (Niigata Seiki) Eccentricity Measurement System
#Grup produk P113731240
Spesifikasi
| AS ONE Part Number | 65-2724-54 |
|---|---|
| Base | Clamp base |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
* Regarding accuracy, it is the manufacturer's measured value of 3 μm = Φ8 mm workpiece. * If the tip of the work is separated from the end face of the main roller, the runout will increase and cause measurement error. Therefore, use the length so that the reference part can be sufficiently sandwiched by the roller.Feature
High-end model S line series. It can be measured by the drive system by the timing belt + pulley and the smooth rotation by the handle with grip. Equipped with a work stopper that presses the front and back of the work, it is also possible to measure the circumferential runout (squareness of the end face) in the axial direction. An ultra-compact and long-hole clamp base that can be mounted on the stage of large measuring instruments. A roller for small diameters that supports workpieces with a diameter of less than 4 mm.* Type: For small diameter measurement * Accuracy (μm): Within 3-6.5 * Measurable outer diameter (mm): DIA1-8 * Measurable length (mm): 5-80 * Measurable shape: Cylindrical * Roller: Slit roller (for small diameter)
Use
For measuring eccentricity by attaching your own indicator and electric micrometerUlasan Produk
