To guarantee accuracy, it comes with an inspection table that shows the numerical values at the time of inspection.
It is equipped with a limit needle.
An O-ring is incorporated to prevent water and oil from entering through the gap between the outer frame and the inner frame.
A jewel bearing is used for the bearing part.
The scale plate is green.
Two types of back lids are included, a flat type and a type with ear fittings.
The shock proof mechanism protects the gears from sudden push-up of the spindle.
For measuring displacement such as unevenness of a flat surface, good / bad mounting of a workpiece, touch of a shaft, and squareness.

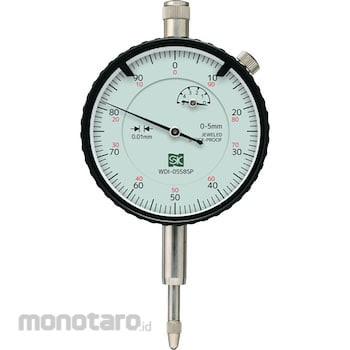

SK (Niigata Seiki) Dial Gauge
#Grup produk P113730065
Spesifikasi
| Measuring Force (N) | 1.5 or less |
|---|---|
| Minimum Reading (mm) | 0.01 |
| One Turn of Long Hand (mm) | 1 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Repeatability (µm) | 3 |
| Return Error (µm) | 3 |
| Type | Standard |
| Type of Scale | ±0-100 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
To guarantee accuracy, it comes with an inspection table that shows the numerical values at the time of inspection.It is equipped with a limit needle.
An O-ring is incorporated to prevent water and oil from entering through the gap between the outer frame and the inner frame.
A jewel bearing is used for the bearing part.
The scale plate is green.
Two types of back lids are included, a flat type and a type with ear fittings.
The shock proof mechanism protects the gears from sudden push-up of the spindle.
Use
For measuring displacement such as unevenness of a flat surface, good / bad mounting of a workpiece, touch of a shaft, and squareness.Ulasan Produk
