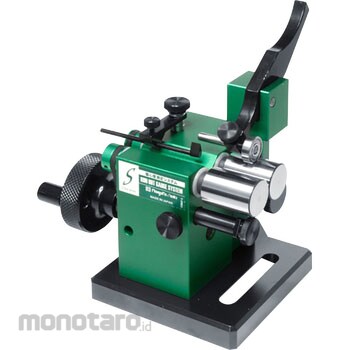

SK (Niigata Seiki) Eccentricity Measurement System S-Line

High-end model S line series. It can be measured by the drive system by the timing belt + pulley and the smooth rotation by the handle with grip. Equipped with a work stopper that presses the front and back of the work, it is also possible to measure the circumferential runout (squareness of the end face) in the axial direction. An ultra-compact and long-hole clamp base that can be mounted on the stage of large measuring instruments. A flat roller that is convenient for workpieces without flanges such as round bars.
For eccentricity measurement by attaching to your indicator
* Regarding accuracy, it is a measured value of 2 μm = Φ20 mm workpiece. * If the tip of the work is separated from the end face of the main roller, the runout will increase and cause measurement error. Therefore, use the length so that the reference part can be sufficiently sandwiched by the roller. * Delivery date may change depending on stock status.
