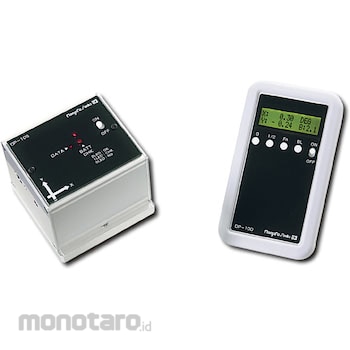

It is a set product of the digital angle meter DP-10S and the display DP-10D that can measure two axes in the × and Y directions at the same time.
You can switch between × Y display, × display, and Y display.
With the 0-call and 1/2-call switches, you can perform operations such as halving the display that determines the standard with a single touch.
In sensor mode, the measurement range is changed to ± 9.998 ° and the minimum reading is changed to 0.002 °. (0 call, 1/2 call cannot be used)
The value of the built-in angle sensor is displayed and output to the personal computer as it is.
Dedicated software that can display and record the measured values on a personal computer is attached.
For leveling surface plates, machine tools, etc., and measuring tilt angles
* Bluetooth system is certified by TELEC (Japan), FCC (US), CE (EU), KCC (Korea).
* If you are using a computer that does not have RS-232C, please prepare a separate USB-serial conversion device.
* Continuous use time (alkaline battery) is about 8 hours (during communication), about 4 hours (waiting for communication) with DP-10S, about 10 hours with DP-10D * Reading accuracy 1: within ± 2 ° * Reading accuracy 2 : Exceeds ± 2 ° * External output signal: RS-232C compliant (DP-10D)
* DP-10S: L85 x W85 x H73mm, 540g
* DP-10D: L145 x W76 x H30mm, 230g
SK (Niigata Seiki) Digital Angle Gauge Levelnic
#Grup produk P113727849
Sebelum PPN:
Rp57.999.900 - Rp60.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Accuracy | Reading accuracy: ± 0.01 °, ± 0.05 ° |
|---|---|
| Accuracy (%) | x Y orthogonal: 1 |
| Angle Measuring Range (°) | ±9.99 |
| Minimum Reading (°) | 0.01 |
| Power Supply | AA batteriesx2, AC adapter (3V output)x2 |
| Repeatability (°) | ±0.01 |
| Wireless Communication System | Bluetooth Class1 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
* Bluetooth system is certified by TELEC (Japan), FCC (US), CE (EU), KCC (Korea).* If you are using a computer that does not have RS-232C, please prepare a separate USB-serial conversion device.
* Continuous use time (alkaline battery) is about 8 hours (during communication), about 4 hours (waiting for communication) with DP-10S, about 10 hours with DP-10D * Reading accuracy 1: within ± 2 ° * Reading accuracy 2 : Exceeds ± 2 ° * External output signal: RS-232C compliant (DP-10D)
* DP-10S: L85 x W85 x H73mm, 540g
* DP-10D: L145 x W76 x H30mm, 230g
Feature
It is a set product of the digital angle meter DP-10S and the display DP-10D that can measure two axes in the × and Y directions at the same time.You can switch between × Y display, × display, and Y display.
With the 0-call and 1/2-call switches, you can perform operations such as halving the display that determines the standard with a single touch.
In sensor mode, the measurement range is changed to ± 9.998 ° and the minimum reading is changed to 0.002 °. (0 call, 1/2 call cannot be used)
The value of the built-in angle sensor is displayed and output to the personal computer as it is.
Dedicated software that can display and record the measured values on a personal computer is attached.
Use
For leveling surface plates, machine tools, etc., and measuring tilt anglesUlasan Produk
