When the spindle pull-back spring is removed, the measuring force is only the spindle's own weight. (Only normal posture is possible)
* Accuracy (mm) is a value that does not include the quantization error ± 1 count.
* Please use PDS-2 when using the standard gauge.
* For separately shipped products, if you order by cash on delivery, it will be shipped the next day or later. * For products with proofreading, cancellation is not possible after ordering.
* Documents applicable only to products that include (with manufacturer's calibration certificate / traceability system diagram) and (with calibration company implementation calibration certificate / traceability system diagram) are attached.
* Products with a calibration certificate are calibrated by the manufacturer "with a manufacturer's calibration certificate / traceability system diagram" and "calibration company implementation calibration certificate / traceability" that is calibrated at the calibration point of the calibrator standard based on the ISO9001 quality management system. There is a system diagram.

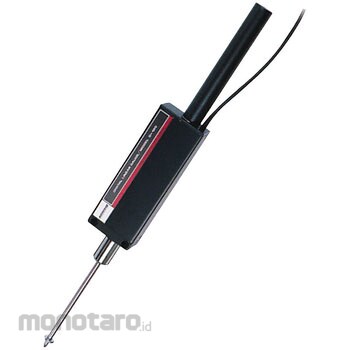

Peacock (Ozaki Manufacturing) Linear gauge
#Grup produk P113725160
Sebelum PPN:
Rp17.999.900 - Rp22.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Accuracy (mm) | 0.005 (quantization error ±1 count not included) |
|---|---|
| Cable Length (m) | 2 |
| Function | *If the spindle retraction spring is removed, the measuring force will be the weight of the spindle alone. (Only possible in the upright position) D-100S...approx. 1.1N *If using a gauge stand, please use PDS-2. |
| Included Accessories | 1 finger lever for lifting the spindle |
| Mass (g) | 520 |
| Measuring Force (N) | 3.5 or less |
| Measuring Range (mm) | 100 |
| Minimum Reading (mm) | 0.001 |
| Operating Temperature (°C) | 0~40 |
| Operating Temperature Range (°C) | 0~40 |
| Option | Horizontal mounting bracket (GB-50) on the main body, change of measuring force (when using the gauge upside down) |
| Output Signal | 90 ° phase difference, 20μm pitch (Connector R03-PB8M Tajimi) |
| Probe | SDIA2.4mm (X-9 with steel ball) |
| Retention Method | Screw the body with DIA20mm stem or two M4 screws |
| Suitable For | (Counter) C-500, C-700 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
* Accuracy (mm) is a value that does not include the quantization error ± 1 count.* Please use PDS-2 when using the standard gauge.
* For separately shipped products, if you order by cash on delivery, it will be shipped the next day or later. * For products with proofreading, cancellation is not possible after ordering.
* Documents applicable only to products that include (with manufacturer's calibration certificate / traceability system diagram) and (with calibration company implementation calibration certificate / traceability system diagram) are attached.
* Products with a calibration certificate are calibrated by the manufacturer "with a manufacturer's calibration certificate / traceability system diagram" and "calibration company implementation calibration certificate / traceability" that is calibrated at the calibration point of the calibrator standard based on the ISO9001 quality management system. There is a system diagram.
Feature
When the spindle pull-back spring is removed, the measuring force is only the spindle's own weight. (Only normal posture is possible)Ulasan Produk
