A dial gauge in which the spindle operates at right angles to the scale plate. The back plunger type dial gauge is suitable for leveling tables such as machine tools and for use in places where the scale plate is difficult to see in narrow places. Suitable for mounting on multi-point measuring jigs.
*Only available for online orders*Orders cannot be cancelled after they are placed for products that come with a calibration certificate. *Only products that include (calibration certificate performed by manufacturer and traceability system diagram included) or (calibration certificate performed by calibration company and traceability system diagram included) in the product number will come with the relevant documents. *Products with a calibration certificate include "calibration certificate performed by manufacturer and traceability system diagram included," where the manufacturer performs the calibration, and "calibration certificate performed by calibration company and traceability system diagram included," where the calibration is performed at a calibration point set by a calibration company based on the ISO9001 quality management system.
*Products whose part number includes (English calibration certificate included) will be calibrated at a calibration point established by an external calibration company based on the ISO quality management system and shipped after the documentation is issued.

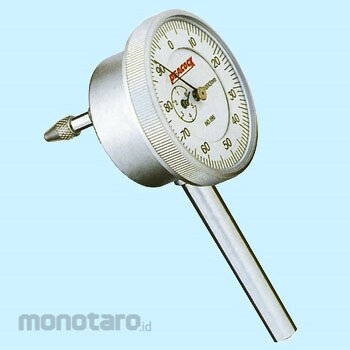

Peacock (Ozaki Manufacturing) Back Plunger Type Dial Gauge
#Grup produk P113721988
Sebelum PPN:
Rp1.999.900 - Rp4.199.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Dimension A (mm) | 44 |
|---|---|
| Dimension B (mm) | 38 |
| Dimension C (mm) | 9 |
| Dimension D (mm) | 4.5 |
| Dimension F (mm) | 28.1 |
| Dimension G (mm) | 57 |
| Measuring Force (N) | 1.4 or less |
| Measuring Range (mm) | 5 |
| Minimum Reading (mm) | 0.01 |
| Outer Frame Diameter (mm) | 38 |
| Probe | X-1 |
| Type of Scale | 0-50-100 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
*Only available for online orders*Orders cannot be cancelled after they are placed for products that come with a calibration certificate. *Only products that include (calibration certificate performed by manufacturer and traceability system diagram included) or (calibration certificate performed by calibration company and traceability system diagram included) in the product number will come with the relevant documents. *Products with a calibration certificate include "calibration certificate performed by manufacturer and traceability system diagram included," where the manufacturer performs the calibration, and "calibration certificate performed by calibration company and traceability system diagram included," where the calibration is performed at a calibration point set by a calibration company based on the ISO9001 quality management system.*Products whose part number includes (English calibration certificate included) will be calibrated at a calibration point established by an external calibration company based on the ISO quality management system and shipped after the documentation is issued.
Feature
A dial gauge in which the spindle operates at right angles to the scale plate. The back plunger type dial gauge is suitable for leveling tables such as machine tools and for use in places where the scale plate is difficult to see in narrow places. Suitable for mounting on multi-point measuring jigs.Ulasan Produk
