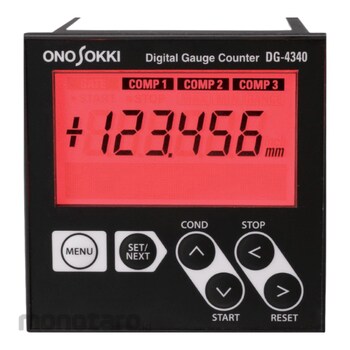

ONO SOKKI Digital gauge counter
#Grup produk P113720040
Sebelum PPN:
Rp9.799.900 - Rp10.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Digital output | BCD output, update time 10 ms, open collector output (positive/negative logic switchable) |
|---|---|
| Display | LCD display: Segment and dot matrix composite display with two-color backlight, 6-digit display |
| Display Range | 0 to ±199999 (When 0.5 μm resolution is selected, the first digit will only display 0 or 5) |
| Function | (Calculation) Offset function, multiplication switching function, decimal point position change function, coefficient correction function / (Panel condition memory) Setting parameters are saved inside the digital gauge counter (4 conditions) |
| Included Accessories | Instruction manual, panel mounting bracket, terminal block cover |
| Input Frequency (Hz) | DC~300k |
| Input Signal | Two-phase phase difference square wave, one-phase square wave (supported by switching internal settings) |
| Mass (g) | About 320 |
| Operating Temperature Range (°C) | 0~40 |
| Option | DG-0430 (12V power supply), AX-2050N (3m power cable), AA-8107 (BCD cable, one side open, 3m) |
| Outer Dimensions (mm) | 72(W)x72(H)x114(D) |
| Power Supply | AC100~240V |
| Power Supply Voltage | AC100~240V (50/60Hz) 6VA or less (at AC100V) |
| Power for Sensor | DC5V 200mA, DC12V 150mA (when option DG-0430 is installed) |
| Resolution (µm) | Select from 0.5, 1, 10 (units are not displayed when an encoder is selected as the input sensor) |
| Storage Temperature Range (°C) | -10~55 |
| Suitable For | Ono Sokki Linear Gauge Sensor (excluding GS-3800 series)<br> Ono Sokki sensors with 2-phase and 1-phase rectangular wave voltage output (encoders, etc.)<br> Sensor power output: DC5V±10%, 200 mA |
| Suitable Sensor | Ono Sokki Linear Gauge Sensor (excluding GS-3800 series)<br> Ono Sokki sensors (encoders, etc.) with 2-phase and 1-phase rectangular wave voltage output |
| Type of Display | LCD display Segment, dot matrix composite display 2-color backlight 6-digit display |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
* If you order by cash on delivery, it may be shipped the next day or later.
