The IR-CZ series is a stationary radiation thermometer with an integrated digital temperature display and external measurement output.
It measures ultra-high temperatures above 2000°C with high accuracy in the measurement range of 900°C to 3500°C. The optical system and circuit board have been completely redesigned to achieve long-term stability. It also comes with a window contamination detection function that is convenient for measurements through windows in vacuum furnaces, etc.
*When ordering a product number that includes (a complete set of traceability documents), please specify the name to be written on the documents.
*Please note that products with (complete set of traceability documents) cannot be canceled or returned after ordering.
*For products that include (a complete set of traceability documents), the manufacturer will inspect and calibrate the product before including the documents.
*Please note that specifications and appearance may be changed without notice for improvement purposes.
*Please check the manufacturer's website for the latest information.

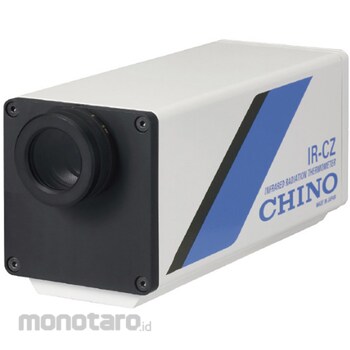

CHINO Radiation Thermometer IR-CZ Series High-Temperature, High-Precision Type
#Grup produk P113711547
Sebelum PPN:
Rp199.999.900 - Rp349.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Interface | RS-485 (transmits measurement data and transmits and receives setting parameters) |
|---|---|
| Measurement Temperature Range (°C) | 900~3500 |
| Output Signal | 4 to 20mA DC, isolated output (load resistance 750Ω or less) |
| Power Consumption (VA) | Up to 2.4 |
| Power Input (V) | 24 DC |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Remark | No accompanying documents |
| Reproducibility | Within 0.5 °C |
| Resolution (°C) | 0.5 |
| Response Time (ms) | 2 to 15 (when measuring above 50°C) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
*When ordering a product number that includes (a complete set of traceability documents), please specify the name to be written on the documents.*Please note that products with (complete set of traceability documents) cannot be canceled or returned after ordering.
*For products that include (a complete set of traceability documents), the manufacturer will inspect and calibrate the product before including the documents.
*Please note that specifications and appearance may be changed without notice for improvement purposes.
*Please check the manufacturer's website for the latest information.
Feature
The IR-CZ series is a stationary radiation thermometer with an integrated digital temperature display and external measurement output.It measures ultra-high temperatures above 2000°C with high accuracy in the measurement range of 900°C to 3500°C. The optical system and circuit board have been completely redesigned to achieve long-term stability. It also comes with a window contamination detection function that is convenient for measurements through windows in vacuum furnaces, etc.
