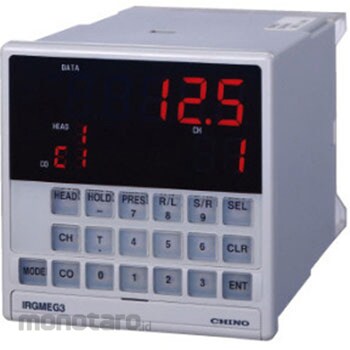

CHINO Infrared multi-component meter (setting display)
#Grup produk P113707687
Spesifikasi
| Alarm Function | Contact output (1 output) to HCL terminal when out of setting range |
|---|---|
| Analog Output | Analog signal: 4 to 20mADC, 3 outputs / Outputs 1 and 2: Load resistance 600Ω or less / Output 3: Load resistance 400Ω or less |
| Case | Flame-retardant polycarbonate |
| Communication Output | RS-232C |
| Display | 1. Measurement value display, . (decimal point position variable) / 2. Head number, CH.No., parameter display |
| Function | External settings: Head number, CH. No., calibration, hold, preset possible, Self-diagnosis: When detector self-diagnosis is abnormal, contact output (1b), with lamp display |
| Input Signal | RS-485 (connects to detector), up to 9 units can be connected |
| Operating Temperature Range (°C) | 0~50 |
| Operation | Calibration: Calibration is performed when an output checker plate is inserted using key operation or an external contact. Hold/Preset: Display and output are held or preset using key operation or an external contact. |
| Output | Scaling: Numeric keypad setting (0.1 step), (update cycle) Communication output: 28 ms x number of detectors |
| Power Consumption | Maximum 15VA |
| Power Supply | 100~240V AC 50/60Hz |
| Suitable For | Smoothing T: Smoothing time setting for smoothing calculation / T = 0.1 to 99.9 seconds, Calibration curve correction: Online correction of input calibration curve, linear to quadratic formula correction |
