Entry model machine capable of centimeter-level positioning Achieves more stable positioning accuracy by supporting multiple satellite positioning systems. Supports network type RTK. Highly accurate measurement is possible with only one unit. Achieve IP66. It can be used without problems even in rainy weather. It weighs less than 2 kg even with the pole, making it easy to carry and less tiring.
*CEP (mean error radius) is the radius of the circle that represents the range where the receiver exists with a probability of 50%.

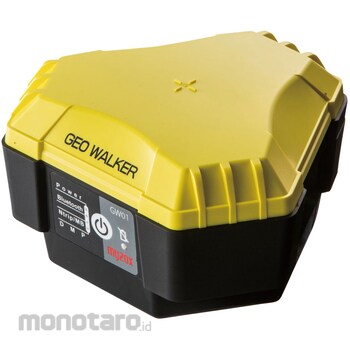

Myzox Dual frequency RTK-GNSS receiver GEO WALKER
#Grup produk P113705023
Spesifikasi
| Accuracy | Horizontal position: SBAS 1.0m CEP, RTK 1cm+1ppmxD CEP, Vertical position: RTK 1cm+1ppmxD CEP |
|---|---|
| Applicable Frequency | 1559-1606MHz/1197-1249MHz |
| Bluetooth | 4.2 |
| Continuous Operating Time (hour) | About 9 |
| Dust / Water Protection | Equivalent to IP66 (when battery box is locked) |
| Main Unit Dimensions (mm) | 188 x 163 x 100 (including mounting part) |
| Mass of Main Unit (kg) | Approximately 1 (including batteries) |
| Set Contents | GEO WALKER main unit, 12 rechargeable Ni-MH batteries (AA size), 2 chargers (4 batteries can be charged simultaneously per unit), hard carrying case, quick start guide, warranty card |
| Warranty Period | 1 year (Japan only. Accessories are not covered by the warranty.) |
| Wi-Fi | 802.11 b/g/n 2.4GHz |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
*CEP (mean error radius) is the radius of the circle that represents the range where the receiver exists with a probability of 50%.Feature
Entry model machine capable of centimeter-level positioning Achieves more stable positioning accuracy by supporting multiple satellite positioning systems. Supports network type RTK. Highly accurate measurement is possible with only one unit. Achieve IP66. It can be used without problems even in rainy weather. It weighs less than 2 kg even with the pole, making it easy to carry and less tiring.[DMP] Acceleration, gyro, magnetic sensor each 3 axes, reference tilt correction error <5° approx. 3cm <10° approx. u-blox F9P Engine, GPS L1C/A L2C, GLONASS L1OF L2OF, Galileo E1B/C E5b, BeiDou B1l B2l, QZSS L1C/A L1S L2C, [Update rate] RTK up to 20Hz, [Phase center] Horizontal: 5/8 Inch screw center, vertical: +88 mm above the screw hole on the bottom of the main body
