Kramer Fat Chassis
#Grup produk P113700222
Spesifikasi
| CCIR Frequency Range (MHz) | Frequency agile QAM RF CATV from 54-864 (Channels 2-135); Frequency agile CCIR Channels, 21-79, 57-900 |
|---|---|
| Cable Standard | QAM Standard, HRC, or IRC/ DVB-T & DVB-C User defined (varies by region) |
| Cooling | Four hot-swappable N+1 redundant high-capacity cooling fans front inlet, rear exhaust |
| Dimensions (mm) | 441 x 129 x 374 |
| Modulation Error Ratio (MER) (dB) | > 39, typical |
| Modulation Type | QAM 256 and 64 (ITU-T J83 Annex B) or DVB-T, DVB-C (ITU-T J83 Annex A), (varies by region) |
| Mounting | Standard 19-inch equipment |
| Network Interface | 10/100 Mb Ethernet via RJ45 connection |
| Operating Temperature (°C) | 0 to +45 |
| Operating Temperature (°F) | +32 to +113 |
| Power | 100 ~ 240 V AC 50/60 Hz, 300 W Capacity |
| Quality | 2kHz resolution, +/- 30 PPM accuracy, +/- 35 PPM stability |
| RF Output Level (dBmV) | 13-34, in one DB increments |
| Shipping Weight (kg) | 13.4 |
| User Interface | ZeeVee Maestro |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

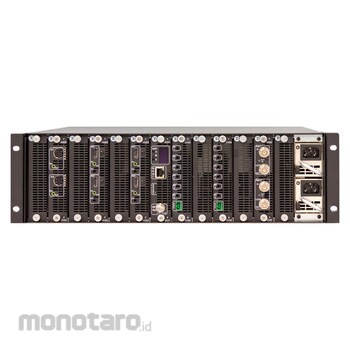

HDbridge3000 is a modular chassis with slots for up to 12 hot−swappable Media Modules, allowing you to mix and match cards with different video interfaces and resolutions. Populate the chassis with up to 72 channels of SD over RF, 24 channels of HD over RF (with optional IP streams), or a mix of boards as needed. Combine multiple HDbridge3000 management, two hot−swappable power supplies with cords, four hot−swappable fans, and eight blank face plates covering empty slots. Audio/Video cables are sold separately.
Feature
3RU12 slots
4 hot–swappable fans
2 hot–swappable power supplies.
