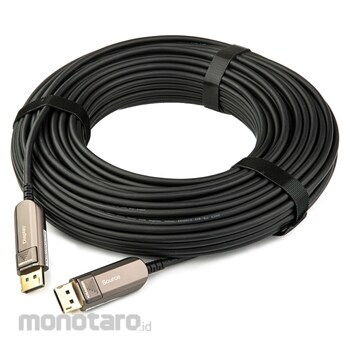

Kramer Displayport 1.4 8K DP Fiber Optic High Speed Cable 8K@60Hz
#Grup produk P113700107
Sebelum PPN:
Rp11.999.900 - Rp32.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Cable Structure | Hybrid Optical Fiber Cable |
|---|---|
| Connectors | Male DisplayPort gold plated |
| Fiber Cable Type | Hybrid cable — 4 x fiber and 8 x copper wires |
| Fiber Optic | 4X850nm Multi-mode fiber |
| Maximum Compression Load Resistance (N) | 300 |
| Maximum Data Rate (Gbps) | 32,4 (HBR3) |
| Maximum Resolution | 8K@60Hz (7680 x 4320) |
| Minimum Cable Bending Radius (mm) | 48 |
| Operating Humidity | 5 to 85% |
| Operating Temperature (°С) | 0 to +50 |
| Outer Sheath Color | PVC Black |
| Outer Sheath Diameter (mm) | 4.8 |
| Outer Sheath Material | LSHF |
| Power Consumption (W) | <0.5 For Each End |
| Sampling Rate (Hz) | 32 to 192K |
| Storage Temperature (°C) | -20 to +85 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
CLS−AOCDP/UF is a DisplayPort™ 1.4, 8K active optical cable (AOC) that features high resolution and data transfer rate. CLS−AOCDP/UF is thin and flexible and requires no external power. User experience is maximized with integrator−oriented features and the latest advances in DisplayPort1.4 technology.
Feature
Latest DisplayPort Technology — Supports 3D, HDCP, EDID, HBR3, DSC, and 8K@60Hz resolution.Streamlines Installations — Supports up to 8K@60Hz over long cable runs of up to 100 meters without the need for an external power supply or additional extenders.
High Data Transfer Rate — Up to 32.4Gbps data rate with 8.1Gbps/lane (HBR3) link rate.
Supports up to 8 channels of 16 or 24bits linear PCM & 32 to 192KHz sampling rate.
No External Power Needed — Powers the active units via the DisplayPort connector.
Thin Construction — 4.8mm diameter.
Safe Construction — Low smoke & halogen free.
Compliance — RoHS 2011/65/EU compliant, CE/FCC.
