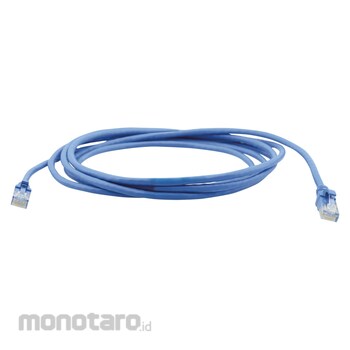

Kramer Copper Patch Cord, Cat 6A/6, S/FTP Cable
#Grup produk P113700046
Spesifikasi
| Cable Size (AWG) | 26 |
|---|---|
| Conductor Diameter (mm) | 7/0.16±0.01 |
| Conductor Material | Annealed bare copper |
| Connector Type | Snagless shielded RJ–45 CAT6A |
| Contact Material | Bronze |
| Contact Plating | Gold 50µm |
| Impedance (ohm) | 1-100MHz: 100±15; 100-250MHz: 100±22; 250-500MHz: 100±25 |
| Insulation Diameter (mm) | 1.07±0.05 |
| Insulation Material | Skin/Foam/Skin PE |
| Maximum Conductor DC Resistance (Ω/km) | <128 |
| Mechanical Characteristics | Maximum pulling tension 100N, minimum bending radius 48mm |
| Propagation Velocity | 0.76 |
| Screening Type | Aluminum poly laminate per pair |
| Sheath Color | Blue RAL 5015 |
| Sheath Diameter (mm) | 6.0±0.5 |
| Sheath Material | LSHF |
| Wiring | EIA/TIA 568B |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Kramer's PC6A−LS508 CAT6A S/FTP patch cord is a high−quality LSHF 4x2x26AWG cable designed for LAN applications to ensure optimum performance.
Feature
Quality Construction — — 4 twisted pairs of 26AWG annealed bare copper, each individually screened and overall braided (S/FTP).RJ–45 Connector — Slim snagless shielded RJ–45 connector, 50u gold plated contacts.
Rated — Low Smoke & Halogen free rated.
Varied Selection of Lengths — 0.15m to 30m (0.45 to 98ft).
