CLS−AOCU32/FF is a USB−C(M) to USB−C(M), USB 3.2 Gen−2 SuperSpeed+ Active AOC Hybrid cable offering a whole new level of reliable connectivity thanks to kramer's unique K−lock (for 15, 25 and 35 ft cables). Transfers Video 4K@60, data at incredible speeds (10G) in parallel to USB 2.0, supports 60W charging power − all with just one Active AOC Hybrid cable.

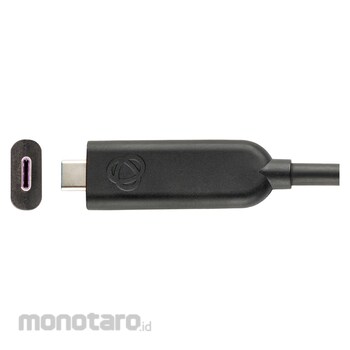

CLS−AOCU32/FF offers throughput of up to 10Gbps when used with a USB 3.2 host and device. The symmetrical, low profile USB Type−C connector, with the integrated K−Lock mechanism, can be plugged in any orientation, thus eliminating the frustration of getting the port insertion just right.
Kramer CoaXPress Cable Assemblies
#Grup produk P113700028
Sebelum PPN:
Rp11.999.900 - Rp14.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Bending Radius (mm) | 36 |
|---|---|
| Color | Black |
| Conductor Resistance (ohm/km) | 28AWG: 237 MAX. at 20°C (68°F); 20AWG: 38 MAX. at 20°C (68°F) |
| Connector A | USB Type-C Male Nickel plated K-Lock Connector with gold pins |
| Connector B | USB Type-C Male Nickel plated K-Lock Connector with gold pins |
| Data Rate (Gbps) | 10 (USB 3.2 Gen 2) & USB 2.0 |
| Diameter (mm) | 5.8 ±0.2 (0.23\" ±0.008) |
| Jacket Material | PVC, LSHF |
| Operating Temperature (°C) | 0 to 50 |
| Power Charging | 20V, 3A (60W) |
| Safety | CE, FCC |
| Storage Temperature (°C) | -20 to 80 |
| Temperature Rating (°C) | 80 |
| Temperature Rating (°F) | 176 |
| Type | USB 3.2 GEN-2 |
| Video | 4K@60 4:4:4 (DP Alt Mode) |
| Voltage Rating (V) | 30 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
4K@60 VideoReversible USB Type–C Connector — With integrated locking mechanism.
Transfer Rates — Up to 10Gbps.
Current Rating — 60W power (3A, 20V).
Compatibility — PC, Mac & Mobile.
Plug and Play — For monitors, Web cameras, printers, scanners, keyboards and other digital devices.
USB Backward Compatibility — 1.0, 1.1, 2.0, and 3.0.
RoHS REACH Compliant
