With a wide linearity range of 100 dB, it can simultaneously measure and selectively display seven noise indices, including time-average sound level, in response to a wide range of sound volume fluctuations without switching the level range.
By separating the microphone section of the sound level meter from the main body and connecting a dedicated coaxial cable, the microphone section can be extended over long distances.
The curved body reduces the effects of sound reflection, and the easy-to-read, intuitive operation menu provides functionality and an easier-to-use human interface than ever before.
In addition, by using dedicated free software, the LA-1441A and LA-4441A sound level meters (sound level meters) can quickly and easily transfer acquired measurement data to a PC via RS-232C or USB, and can also remotely operate and control the sound level meters from a PC.

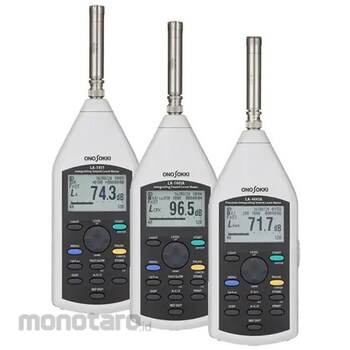

ONO SOKKI Standard sound level meter (certified)
#Grup produk P113697168
Spesifikasi
| Applicable Standard | JIS C 1509-1:2017 (Class 2), JIS C 1516:2020 (Class 2), IEC 61672-1:2013 Class 2 |
|---|---|
| Battery Life (continuous use) | Approximately 8 hours (using LR6 alkaline batteries, 23°C / backlight off / RS-232C/USB not in use) |
| Certification | luck |
| Display Update Time | Numerical display: 1 s, Bar indicator: 0.1 s, Trend screen: 0.2 s |
| Frequency Weighting Characteristics | A,C,Z |
| Level Range | 20 to 90 dB, 30 to 90 dB, 40 to 100 dB, 50 to 110 dB, 60 to 120 dB, 70 to 130 dB (normal range) / 40 to 120 dB (wide range) |
| Measurement frequency Range | 10 Hz~8 kHz(JIS,IEC) |
| Measuring Item | Lp,Leq,LE,Lmax,Lmin,Lpeak,LN(Lhigh,L5,L10,L50,L90,L95,Llow,Lave) |
| Measuring Time | Manual, arbitrary setting (199 h 59 m 59 s max) |
| Memory Function | Manual: 100 total calculation values data sets |
| Microphone | MI-1433 (nominal sensitivity level -29 dB) |
| Power Supply | Two AA batteries or PB-7090 AC adapter (optional) |
| Recommended Equipment | Sound calibrator: SC-2600, SC-2500A, SC-2120A |
| Sampling Cycle | 31.25 μs (other than LN), 100ms (LN) |
| Time Weighting Characteristics | FAST,SLOW |
| Type Approval No. | TS223 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
=Specification&""&attvaluePreamplifier: MI-3111, Internal reference signal (REF OUT): 1 kHz sine wave (-6 dB (normal range), -16 dB (wide range) relative to the upper limit of the level range)
