Highly reliable, conforming to the Measurement Act (enacted in 2015) and IEC 61672-1. Packed with numerous features, this cost-effective sound level meter is easy to use, simple to operate, highly efficient, and supports a wide range. The extension cable has a BNC connector (AG-2000 series, sold separately).
*This product meets the standards of the Weights and Measures Act, but does not come with a certification certificate. *We do not deliver to private homes (detached houses or apartment buildings).

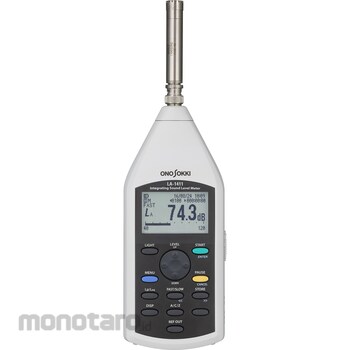

ONO SOKKI Sound level meter (compliant with Measurement Act/JIS standards/IEC)
#Grup produk P113697007
Spesifikasi
| Applicable Standard | JISC1509-1: 2017 Class1, IEC61672-1: 2013Class1 |
|---|---|
| Battery Life (continuous use) | Approx. 8 hours (when using LR6 alkaline batteries, 23 ° C / when backlight is off / when RS-232C / USB is not used) |
| Display Update Time | Numerical display: 1s, bar indicator: 0.1s, trend screen: 0.2s |
| Frequency Range (Hz) | 10~20000 |
| Frequency Weighting Characteristics | A/C/Z |
| Interface | USB.2.0,RS-232C |
| Level Range | 20 to 90 dB, 30 to 90 dB, 40 to 100 dB, 50 to 110 dB, 60 to 120 dB, 70 to 130 dB (normal range) / 40 to 120 dB (wide range) |
| Load Resistance | 10kΩ or more |
| Main Unit Dimensions (mm) | 78x263x47 |
| Mass (g) | 360 (including batteries) |
| Measuring Item | Lp,Leq,LE,Lmax,Lmin,Lpeak,LN(L-high,L5,L10,L50,L90,L95,L-low,L-ave) |
| Measuring Level Range (dB) | 26 to 135 (A characteristic) |
| Measuring Time | Manual, optional setting (199h59m59s (max)) |
| Mode | Start: Manual, Timer (00h: 00m: 1min unit), Trigger (Start is possible after a specified time (0 to 10s, 1s unit) after trigger detection (trigger delay function)) |
| Operating Temperature/Humidity Range | (Humidity) -10 to 50 ° C (-20 to 60 ° C), (Temperature) 25 to 90% RH (10 to 90% RH) However, there should be no condensation. |
| Output | At (AC) bar indicator upper limit: 0.707 Vrms / FS (normal range), 2.236 Vrms / FS (wide range), (DC) At bar indicator upper limit: 2.5 V / FS, voltage change per 10 dB: 0.25V |
| Power Supply | AA batteries x 2 (included) or external power supply (PB-7090 sold separately) |
| Rated Input Voltage (V) | 5 |
| Sampling Cycle | 20.83μs (other than LN), 100ms (LN) |
| Type Approval No. | TF162 (Measurement Law) |
