This is a high-resolution model with 1mV/1mA (PS30V5A10 is 10mV/10mA).
The TFT LCD display provides excellent visibility.
It displays voltage, power, and wattage simultaneously and can store five settings.
Displays power, voltage, and wattage simultaneously!
Simultaneously displays power, voltage, and wattage! Introducing the new high current type! This is a high-resolution model with 1mV/1mA resolution. The 3.95-inch TFT LCD display provides excellent visibility. Low ripple and low noise.

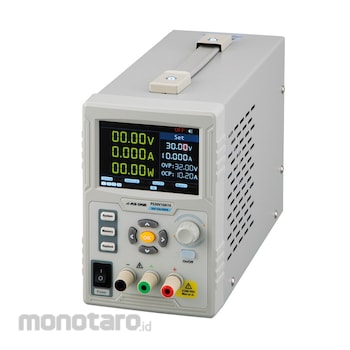

AS ONE PS Series DC Regulated Power Supply
#Grup produk P113695443
Spesifikasi
| AS ONE Part Number | 4-2690-04 |
|---|---|
| Accuracy | Output current: ≤0.1%±10mA, Output voltage: ≤0.1%±20mV |
| Dimensions (mm) | 117x295x194 |
| Display | 3.95 inch TFT LCD display |
| Included Accessories | RS-232 cable, spare fuse |
| Mass (kg) | 2.3 |
| Method | Switching |
| Operating Temperature (°C) | 0~40 |
| Output Capacity | 300W |
| Output Current (A) | 0~10 |
| Output voltage (V) | 0~30 |
| Power Input (V) | 100 50/60Hz |
| Protective Function | Overvoltage / overcurrent |
| Resolution | Output voltage: 0 to 30V, 10mV, Output current: 1mA |
| Response Time | ≤1.0ms |
| Ripple, Noise | Output current: ≤30mAp-p, Output voltage: ≤30mVp-p, ≤3mVrms |
| Storage Temperature (°C) | -20~60 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
=Specification&""&attvalueOutput current/line regulation: ≤20mA, load regulation: ≤30mA, output voltage: line regulation: ≤20mV, load regulation: ≤30mV
