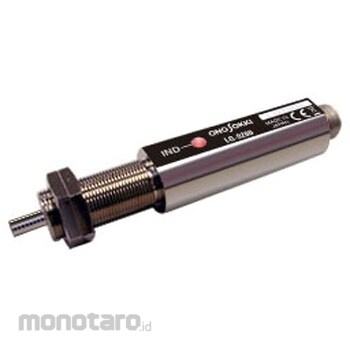

ONO SOKKI Photoelectric rotation detector
#Grup produk P113694967
Spesifikasi
| Applicable Standard | CE marking |
|---|---|
| Connector | Applicable plug: R04-PB6F (compatible signal cable: MX-7000 / 8000 series) (output) |
| Current Consumption (mA) | 60 or less (at 12V) |
| Detection Distance | Recommended distance 20-40mm (when using 12mm square dedicated reflection mark) |
| Detection Method | Photoelectric reflection method |
| Included Accessories | Reflection mark 1 sheet (12mm square 25 sheets), mounting nut x 2, instruction manual x 1 |
| Input Power (V) | DC12±2 |
| Light Source | Light emitting diode (red, visible light) |
| Mass (g) | About 150 |
| Operating Temperature/Humidity Range | (Temperature) -10 to + 60 ° C, (Humidity) 20 to 80% |
| Outer dimensions, Width W x Height H x Depth D (mm) | 21x24x117 |
| Output Impedance (ohm) | About 1k |
| Output voltage (V) | Square wave output (Hi: + 5 ± 0.5, Lo: +0.5 or less) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Response Speed | 40m / s (converted to peripheral speed of rotating shaft) |
| Storage Temperature / Humidity Range | (Temperature) -20 to + 80 ° C, (Humidity) 20 to 80% |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Feature
=Specification&""&attvalueApplicable FV converter: FV-1500
