- Calculate the passing speed from the distance between two points and the passing time - The distance between two points can be set arbitrarily - Passing time can be measured with a minimum resolution of 1 μs - Pulse detection condition setting function
(HIGH/LOW level, rising/falling edge)

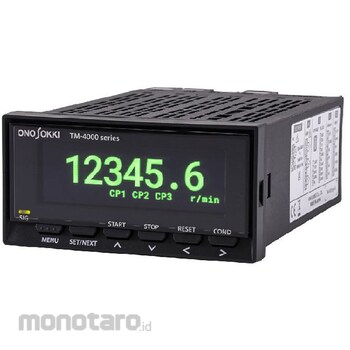

ONO SOKKI Passing time/passing speed meter
#Grup produk P113694842
Spesifikasi
| Dimensions (mm) | 96x140x48 |
|---|---|
| Included Accessories | D-slot connector (Phoenix Contact FMC1, 5/10-ST-3, 5 1952348) x 1 / Packaged installed in the D-slot / Mounting bracket x 1 set (2 pieces) / Instruction manual x 1 set |
| Input Channel | 2ch |
| Insulation Resistance | Between power supply +/- terminals and FG terminals: 10 MΩ or more (DC500 V) |
| Mass (g) | 400 |
| Output specifications | Analog output / comparator output / 2ch voltage input |
| Power supply specifications | AC |
| Safety | Overvoltage category 2 |
| Type of Insulation | Double insulation |
