An innovative lighting magnifier that allows you to change the angle of the panel to illuminate the light source.
(The lighting angle can be freely changed within the range of 0° to 90°. It is now possible to perform inspections by changing the lighting angle.)
The latest and greatest lenses use large, square lenses that are close to the human field of vision. In addition, the lens surface is equipped with an anti-reflective coating as standard.
Can be used up to 240V by simply changing the AC cord.

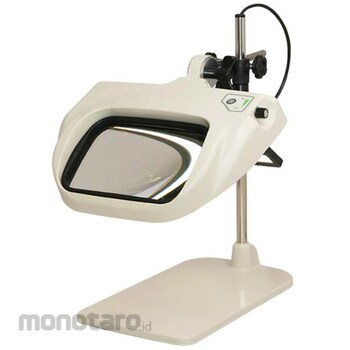

Otsuka Optics OLIGHT6-B 2XAR + Visual Inspection Booth Set
#Grup produk P113694347
Spesifikasi
| Adapter Model | UNIFIVE336-2415(24V/1.5) Mass: 270g |
|---|---|
| Average Color Rendering Index (Ra) | 90 |
| Color Temperature (K) | 4000 (white) |
| Dimmability | Yes (100%~10%) |
| Direct illumination (Lx) | Center (Max): 1820/100mm, 1120/150mm, 360/300mm (measured values, based on manufacturer's measurement method), Center (Min): 130/100mm, 80/150mm, 25/300mm (measured values, based on manufacturer's measurement method) |
| Dust / Water Protection | IP20 (for indoor use only) |
| Effective Lens Diameter (mm) | 180x120 |
| Emitting Surface (mm) | L273xW30 |
| Lens | BIG-Lecta Interchangeable Lens System |
| Light Source | Organic EL lighting panel |
| Mass (kg) | 2.4 (excluding lens weight) |
| Operation Distance (mm) | 160 |
| Rated Input Voltage (V) | AC100~240 50/60Hz |
| Rated Power Consumption (W) | 7 |
| Total Luminous Flux (Lm) | 200 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
=Specification&""&attvalueAR (anti-reflective) coating: standard equipment
