AS ONE NTF series micro flowmeter
#Grup produk P113694204
Spesifikasi
| AS ONE Part Number | 4-2579-21 |
|---|---|
| Ambient Temperature Range (°C) | (Fluid) 15 to 50 |
| Connection Shape | (Tube) Outer diameter DIA4mm hard tube |
| Current Consumption (mA) | Up to 50 |
| Flow Rate (ml/minute) | 10~150 |
| Material | Wetted parts: PTFE, quartz glass |
| Output specifications | Flow rate (current) / 4 to 20mA, flow rate (frequency pulse) / NPN open connector |
| Power Supply Voltage (V) | DC24±10% |
| Suitable fluid | Pure water, chemical solution (fluid that does not corrode the wetted part, fluid that does not adhere to and solidify the wetted part) |
| Withstand Pressure (kPa) | 700 |
| Working Pressure Range (kPa) | 0~500 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

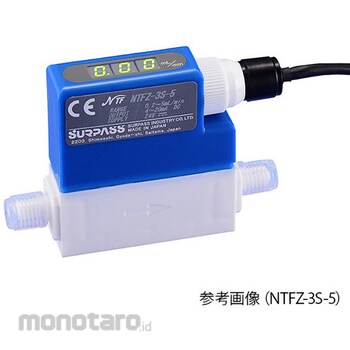

This is a minute flow meter capable of measuring from a minimum of 8uL/min to a maximum of 150mL/min. The measurement method is a TOF method using a thermal marker, and unique digital processing has achieved high accuracy measurement. When used in conjunction with the optional communication adapter, various functions such as power supply to the main unit and flow rate monitoring can be supported. The integrated display structure allows for visual confirmation of flow rate on-site, making it suitable for experimental and research applications.
