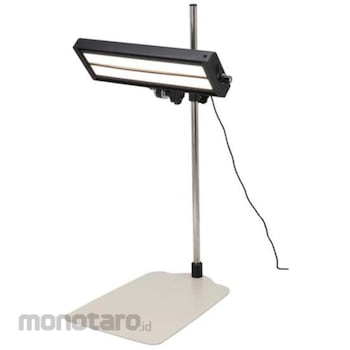

The Modelite series is a lighting dedicated to inspection that uses organic electroluminescence. It is a table stand type B. It uses two organic electroluminescence panels, and is an inspection light that is expected to reduce fatigue during visual inspection, and is effective for inspecting glossy or reflective workpieces. The support pillar is set to a long length of 600 mm, and is designed to make the most of the space when setting up with a visual inspection booth.
By attaching the optional work auxiliary lens ML-WAL, the EL270F can be used as an illuminated magnifier. It is ideal for detailed work and inspection that is difficult to see with the naked eye. The angle of the observation object and the illumination can be freely changed. It is a combination of a highly transparent extra-large wide lens with a magnification of 1.8x and a high magnification lens with 4x and 7x.
*By changing the AC plug cord, it can be used with voltages from 125 to 240V.
Otsuka Optics Modelite EL270B + Visual Inspection Booth Set
#Grup produk P113693861
Spesifikasi
| Adapter Model | UNIFIVE336-2415(24V/1.5) Mass: 270g |
|---|---|
| Average Color Rendering Index (Ra) | 90 |
| Color Temperature (K) | 4000 (white) |
| Direct illumination (Lx) | Center (Max): 3200/150mm, 1100/300mm, 430/500mm (sample measurements, based on manufacturer's measurement method), Center (Min): 240/150mm, 80/300mm, 30/500mm (sample measurements, based on manufacturer's measurement method) |
| Dust / Water Protection | IP20 (for indoor use only) |
| Emitting Surface (mm) | L273xW30 |
| Lens Size (mm) | 1.8x: 142 x 106 / 4x: DIA30 / 7x: DIA25 |
| Light Source | Organic EL lighting panel |
| Mass (kg) | 3.5 (body mass) |
| Rated Input Voltage (V) | 100-240, 50/60Hz, A plug |
| Rated Power Consumption (W) | 13 |
| Total Luminous Flux (Lm) | 200 (per panel) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
=Specification&""&attvalueIlluminance adjustment function: Yes (100% to 10%)
