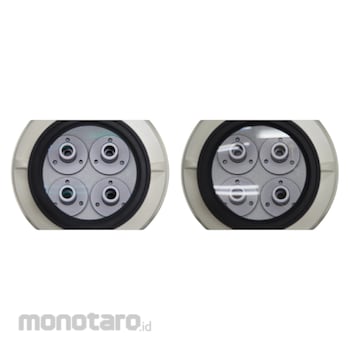

The ENVL-CL type is a product that has two types of lighting: epi-illumination around the lens and transmitted illumination in the box. The two lights can be turned on / off and dimmed individually.
A board-mounted LED with high color rendering (Ra ≧ 90) and high heat dissipation performance is used for the slim head newly designed exclusively for LEDs.
The flat diffusion protection cover protects the work and the light source while reducing the glare peculiar to LEDs.
In addition to visual inspection using epi-illumination, it can be used for inspection of transmissive objects using transillumination, confirmation of the condition of the outer circumference and the inside of through holes, and fish-eye inspection of film.
Otsuka Optics LED lighting magnifier "ENVL-CL type"
#Grup produk P113692002
Sebelum PPN:
Rp17.999.900 - Rp36.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Dimensions (mm) | 210 x 298 (transmissive lighting unit) |
|---|---|
| Dimmability | Yes (100-50%) * Each lighting for epi-illumination and transmission can be turned on / dimmed individually. |
| Dust / Water Protection | IP30 (for indoor use only) |
| Input Voltage (V) | AC100-240 (50 / 60Hz) A plug |
| Light Source | High color rendering white LED (Ra ≥ 90) |
| Mass (kg) | 3.2 (without lens / body only) |
| Operating Temperature Range (°C) | 5~35 |
| Overall Height (mm) | 340 |
| Power Consumption (W) | 9+9 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
=Specification&""&attvalueWith lens
