It is a vibration-resistant electronic horizontal sensor + motor system. The output of the laser light can be switched in three stages. You can irradiate the laser light at an angle using the head without tilting the tripod. It is a removable battery that can be charged whether it is attached or removed from the main unit. There is no need to worry about damage caused by dust or water splashes. It is a receiver and tripod set.
For various markings.
*Depending on the delivery location, delivery dates may be delayed and additional shipping fees may apply. *We do not deliver to private homes (detached houses or apartment buildings). *Drivers will not assist with unloading. *Do not use for purposes other than intended. *Do not subject the product to strong impacts such as dropping. This may cause malfunctions. *Products with (Calibration Certificate: General) or (Calibration Certificate: JCSS) in the product number cannot be canceled after ordering. *Only products with (Calibration Certificate: General) or (Calibration Certificate: JCSS) in the product number come with the relevant documents. *As of July 1, 2013, the documents issued for products with (Calibration Certificate: General) or (Calibration Certificate: JCSS) in the product number will be the calibration certificate and calibration results (inspection report). *Documents cannot be issued for receivers and tripods.

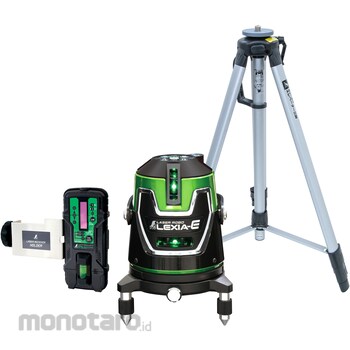

Shinwa Rules Laser Robo LEXIA-E Green 51 Receiver and Tripod Set
#Grup produk P113691128
Sebelum PPN:
Rp26.999.900 - Rp31.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Accuracy | Center core: ± 1 mm at 7.5 m |
|---|---|
| Automatic Correction Range | ±2.5° |
| Battery Capacity (mAh) | 2600 |
| Continuous Use Time | (Medium mode, full irradiation mode) Approximately 8.5 hours |
| Dust / Water Protection | IP54 |
| Indication accuracy | Vertical / horizontal line: ± 1 mm at 7.5 m |
| Light Source | Visible semiconductor laser |
| Line Projection Angle (°) | Vertical: Approximately 130, Horizontal: 120 |
| Line Width (at 5m point) | (3 levels of brightness) Weak about 1.5 / Medium about 1.8 / Strong about 2 |
| Main Unit Dimensions (mm) | 173x128x128 |
| Mass of Main Unit (g) | 1200 |
| Output (mW) | 1 or less (Class 2) |
| Power Supply | Detachable lithium-ion battery |
| Right angle accuracy | 90°±0.04° |
| Rotation Fine Adjustment Range (°) | 360 |
| Tripod Mounting Screw | W 5/8 inch |
| Type of Braking | Electronic horizontal sensor + motor system |
| Vertical point accuracy (mm) | ± 1 at 3m |
| Warning Alarm | When tilted: The laser line flashes when the automatic correction range is exceeded (at intervals of about 1 second), and battery overtime: The battery level warning lamp flashes during use. |
| Wavelength (nm) | 515-530 (green), ground ink points 645-655 (red) |
