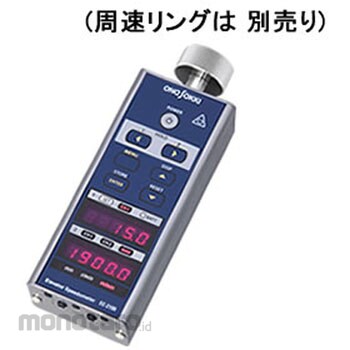

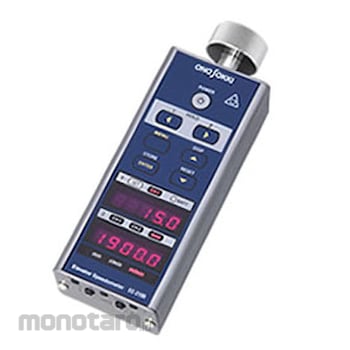

ONO SOKKI Elevator speedometer
#Grup produk P113688540
Spesifikasi
| Battery Life (continuous use) | 15 or more (at room temperature) |
|---|---|
| Bearing | Life: 2 x 10 <sup>7</sup> r / min . h (at maximum load within specifications) |
| Content | Instantaneous value (output after averaging process) |
| Conversion System | 10bit (D / A conversion) |
| Current Consumption (mA) | Within 20 |
| Dimensions (mm) | W60 x L162 x D38 (same as previous model EC-900) |
| Display | 5 digits (red LED x 2) |
| Function | Auto power off function: 180 seconds after the last operation, power off, data hold function, CH1, CH2, maximum value (independent), averaging function: 1 to 200 times (arbitrary setting), memory function: 10 sets of measurement results Save to device |
| Included Accessories | External hold signal cable (1.4m): EC-09221 pairs (2), Carrying case: EC-09251, Hex wrench (1.5mm across flats): 1, AA batteries: 3 |
| Mass (g) | About 423 |
| Measuring Accuracy | ± 1 count |
| Measuring Range | Speed measurement: 0.1 to 2000 (m / min), rotation speed measurement: 1 to 20000 (r / min) |
| Measuring Time | 10ms |
| Number of Pulses | 600 pulses / revolution |
| Operating Temperature/Humidity Range | (Temperature) 0 to 45 ° C, (Humidity) -10 to 60 ° C |
| Output Type | Transistor output (open collector) |
| Power Supply | 3 AA batteries |
| Pulse Width | Pulse output: about 0.5 to 1.2 μs, detector: 150 pulses / revolution (slit reflection method) |
| Resolution | Speed: 0.1 (m / min), Rotation speed: 0.1 (r / min) (average number of 10 or more) |
| Units of Measurement | Speed: m / min, rotation speed r / min |
