Bright and easy-to-read large LED display. Multi-input of thermocouple, RTD, and voltage is possible. Compact DIN standard size of 48 x 96 mm. Equipped with a screen saver function. If there is no key operation over the set time, the LED will turn off. (Function OFF is also possible) Ideal for connecting with a temperature/humidity converter (SK-RHC series).
*The factory setting is K (code 05, 0 to 1200°C). *Sensors are sold separately. *Power cable is not included.

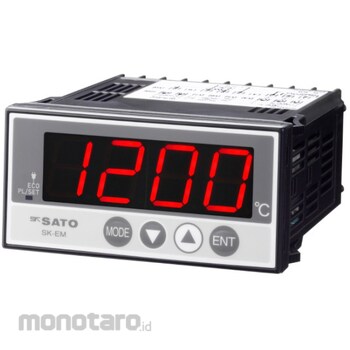

Sato Keiryoki Mfg digital panel meter
#Grup produk P113687727
Spesifikasi
| AC Power Input (V) | 100~240 ±10%(50/60Hz) |
|---|---|
| Applicable Standard | Safety: IEC61010-1 and EN61010-1, IEC61010-2-030 and EN61010-2-030, EMC: EN61326-1 |
| Dimensions, Width W x Height H x Depth D (mm) | 96 x 48 x 111 (panel depth 100) |
| Dust / Drip Protection | Equivalent to IP66 (However, panel mounting thickness: 1.2 to 3.2 mm) Applicable only to the front panel |
| Installation | Panel embedded type (one-touch mounting) |
| Mounting Hole Dimensions (mm) | W92xH45 |
| Operation Environment | Temperature -10 to 50°C, Humidity 90%rh or less (no condensation) |
| Resistor | Temperature measurement: JIS Pt100 three-wire system, JPt100 three-wire system |
| Thermocouple | B,R,S,K,E,J,T,N{U,L(DIN43710)},C(WRe5-26) |
| Type of Display | 11 segments red LED 4 digits |
| Type of Input | Thermocouple, RTD, voltage (mV, V) |
| Voltage | 0~10mV DC,0~5,1~5,0~10V DC |
