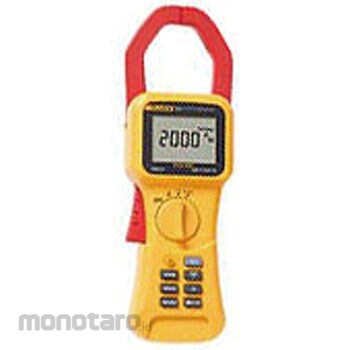

Highly reliable measurement is possible. It is the tool of choice for professionals for measuring large current clamp-on ammeters up to 2000A. An extra wide jaw that easily clamps large conductors commonly found in high current applications. The exceptionally robust design and CATIV600V, CATIII1000V ratings keep users safe, even for high power measurements.
The inrush current mode allows accurate peak measurements, ideal for motors and inductive loads. Fluke355 also measures voltage and resistance, making it an ideal tool for public works, electrical contractors and industrial technicians.
*Products with proofreading documents cannot be canceled after ordering.Only products that include proofreading documents and traceability system diagrams will be accompanied by applicable documents. Calibration points are standard points determined by the calibration company.
*Products whose part number includes (English version of calibration certificate included) will be calibrated at a calibration point based on the standards of an external calibration company based on the ISO quality management system, and will be shipped after the document is issued.
FLUKE Clamp meter
#Grup produk P113686445
Sebelum PPN:
Rp56.999.900 - Rp57.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| AC Current (A) | 40.00-1400 |
|---|---|
| AC Voltage (V) | 600 |
| Battery Life (hour) | 100 |
| Buzzer Sound | ON when 30Ω or less, OFF when 100Ω or more |
| DC Current (A) | 40.00-2000 |
| DC Voltage (V) | 600 |
| Dimensions (H x W x D) (mm) | 300 x 98 x 52, (Jaw width) 58 |
| Frequency | Measurement range: 5.0Hz to 1kHz, Resolution: 0.1Hz (15Hz to 399.9Hz), 1Hz (400Hz to 1kHz) |
| Mass (g) | 814 |
| Measurement Range | 40A,400A,2000A 1400AC RMS,4V,40V,400V,600VACRSM,100VDC,400Ω,4kΩ,40kΩ,400kΩ |
| Operating Humidity (%) | 0 to 95 (no condensation) |
| Power Supply | 6 1.5V AA batteries (NEDA15A or IEC LR6) |
| Protection Class | IP42 (indoor use only) |
| Resolution | 10mA,100mA,1A,1mv,10mV,100mV,1V,0.1Ω,1Ω,10Ω,100Ω |
| Safety | IEC 61010-2-032,600 V CAT IV,1000 V CAT III |
| Set Contents | 355 clamp meter, C43 soft case, 6 AA batteries, TL224 test lead, TP2 test probe, AC285 alligator clip |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
=Specification&""&attvalueTest lead: Rated 1000V
