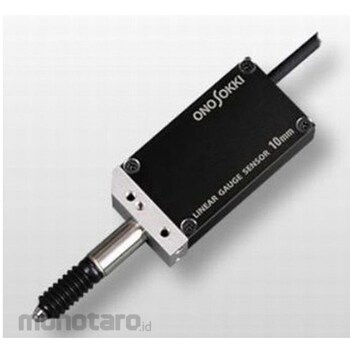

ONO SOKKI Baby gauge sensor BS-1310

=Specification&"
"&attvalue*Measuring range: 10 mm*Resolution: 1 μm*Indication accuracy (at +20 °C): 3 μm*Maximum response speed *1: 0.3 (1.2) m/s*Measuring force (downward): 1.47 N or less (including dustproof rubber)*Sliding durability: 30 million times or more*Protection rating: IP66 (excluding connector)*Stem diameter: DIA8 mm +0-0.03*Power supply: DC 4.5 to 5.5 V*Current consumption: 50 mA or less*Signal output (when DC 5 V is supplied): 2-phase square wave signal, phase difference 90 °±20 °, Output voltage Hi: +4.5 V or more (no load), Lo: +0.4 V or less,*Operating temperature range: 0 to +50 °C*Storage temperature range: -10 to +65 °C*External dimensions: 94.5 x 29 x 13 mm*Cable length: approx. 1.9 m*Weight: approx. 110 g*(including cable and amplifier):*Accessories: Instruction manual*Options:.AA-813 Mechanical release *2*AA-816 Pneumatic release *2*ST-022 Gauge stand*AA-973 Replacement dustproof rubber*Extension spindle AA-844 (30 mm) / AA-845 (50 mm)*Various extension signal cables.Various contact points *3*Code number: 119-0164422
