The NP-2910 is a standard acceleration detector.
Since it is a charge output type, a charge amplifier (sold separately) is required, but it can generally be used at a higher temperature than the built-in preamplifier type.

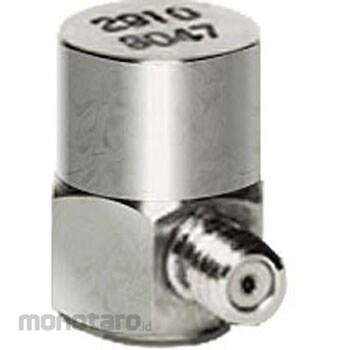

ONO SOKKI Acceleration detector NP-2910
#Grup produk P113684766
Spesifikasi
| Cable | NP-0150 series |
|---|---|
| Capacitance (pF) | 500±20% |
| Connector | M3 coaxial (micro connector) sideways |
| Frequency (kHz) | About 63 |
| Frequency Range (Hz) | fc~10±0.5dB,fc~20±3dB |
| Included Accessories | Load characteristics table |
| Insulation Resistance (MΩ) | 10000 or more |
| Mass (g) | About 2 |
| Material | Titanium (case) |
| Maximum Acceleration (m/s²) | 50000 |
| Operating Temperature Range (°C) | -20~+160 |
| Outer Dimensions (mm) | 7x10 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Sensitivity | 0.3pC/(m/s<sup>2</sup>)±2dB) |
| Shock Resistance | 100000m/s<sup>2</sup> |
| Structure | Share type |
| Type of Sign | Bonding |
