ONO SOKKI Acceleration detector NP-2506
#Grup produk P113684748
Spesifikasi
| Cable | Straight 3m, cable diameter DIA0.8mm (three), connector: 10-32 coaxial plug (miniature) |
|---|---|
| Capacitance (pF) | 580 ± 20% (including cable) |
| Frequency (kHz) | 60 |
| Frequency Range (Hz) | fc~20000(±3dB),fc~5000(±10%),fc~1000(±5%) |
| Included Accessories | Load characteristics table |
| Insulation Resistance (MΩ) | 10,000 or more (DC50V) |
| Mass (g) | About 1.2 |
| Material | Titanium (case) |
| Maximum Acceleration (m/s²) | 25000 |
| Operating Temperature Range (°C) | -50~+160 |
| Outer Dimensions, Width W x Depth D x Height H (mm) | 8x7x5.5 |
| Output Type | Charge output type |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Sensitivity | 0.04pC/(m/s<sup>2</sup>)±20% |
| Shock Resistance | 50000m / s <sup>2</sup> or more |
| Structure | Share type |
| Type of Sign | Bonding |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description

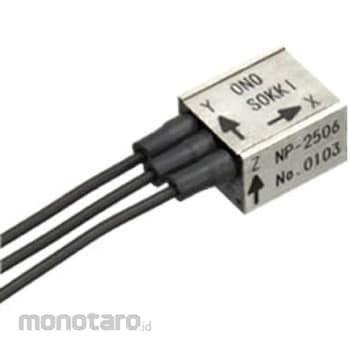

The NP-2506 is a 3-axis type sensor that can measure acceleration in 3 directions of XYZ. It measures 8 x 7 x 5.5 mm and weighs 1.2 g, making it extremely compact and lightweight for a 3-axis sensor. An accelerometer with a wide measurement range suitable for impact testing of small products and vibration measurement of lightweight parts.
