Voltage setting possible in 50V steps (~1000V) and 100V steps (1000V~) Maximum test voltage 1000OV (Fluke1555), 5000V (Fluke 1550C) Insulation resistance measurement test using G terminal method PI (polarization index), DAR (dielectric Absorption ratio) test Timer test Lamp test Leakage current measurement Automatic discharge function Detects and warns live wires over 30V 99 recorded data saved as a document Documented with FlukeView Forms
Ideal for testing motor windings, high voltage electrical equipment, etc.

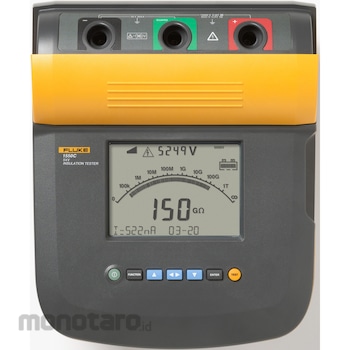

FLUKE 5kV high voltage insulation resistance tester FLUKE-1550C
#Grup produk P113684483
Spesifikasi
| Accuracy | [Test voltage] -0%, +10%@1mA load current |
|---|---|
| Basic Accuracy | [Capacitance] 0.01μF to 15.00μF/±(15%+0.03μF) |
| Operating Temperature (°C) | -20~50 |
| Storage Temperature (°C) | -20~65 |
| Test Voltage | Insulation resistance range/accuracy |
| Warranty Period | 3 years |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
=Specification&""&attvalue[Measurement category] CATIV600V, CATIII1000V [AC induced current removal] Maximum 2mA [Test voltage 25V] 2.5MΩ to 50GΩ/±5%, 50GΩ to 500GΩ/±20%, [Test voltage 5V] 5MΩ to 100GΩ/±5%, 100GΩ~1TΩ/±20%,
