High Performance: Add 4x SATA 3.0 6Gbps ports in one PCIe x2 slot to connect SATA drives (HDD/SSD) to your desktop/server. Supports four SATA drive connections (SATA cables sold separately)
ASM1164 Controller: Single-chip design adds 4 SATA 6Gbps ports to a single x2 PCI Express slot, providing a total of 16Gbps bandwidth. Supports Port Multiplier and NCQ (Native Command Queue) Compatibility: Compliant with PCIe 3.0, SATA 3.2, AHCI 1.4 specifications, backward compatible and compatible with older versions. Compatible with Windows 7 and above, macOS 10.10 and above, and Linux 2.6.32 and above. Improved motherboard compatibility with no built-in RAID design. ATA & ATAPI (HDD, SSD, Optical Disc) Compatible Easy Installation: Plug and play interface card for easy setup. Can be used in both full-profile and low-profile PCI slots (full-profile bracket installed, low-profile bracket included). Supports storage management systems such as Storage Spaces (Microsoft), RAID Assistant (macOS), mdraid/mdadm (Linux)
The StarTech.com Advantage: The product of choice for IT professionals for over 30 years. 2-year manufacturer's warranty and lifetime free technical support (Mon-Fri).
Add four SATA 6Gbps drives to your desktop PC or server Manage the drives with a storage management system and configure RAID arrays. Compatible with Storage Spaces (Microsoft), RAID Assistant (macOS), mdraid/mdadm (Linux), etc.

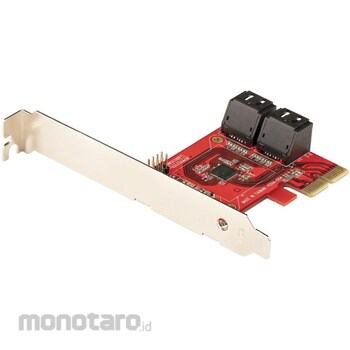

StarTech.com SATA 4-Port Expansion PCI Express Interface Card/6Gbps/Low Profile & Full Size PCI Compatible/SATA Stack Connector/No RAID/ASM1164 Chip Equipped/SATA PCIe Expansion Board
#Grup produk P113639100
Spesifikasi
| Color | Red |
|---|---|
| Connector Size | PCI Express x2 |
| Data Packet Rate | 6Gbps |
| Height (mm) | 16 |
| Interface | PCI Express |
| Length (mm) | 70 |
| Mass (g) | 50 |
| Number of Ports | 4 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Set Contents | 1-PCIeSATA card, 1-full profile bracket (already installed), 1-low profile compatible bracket, 1-quick start guide |
| Supported OS | Windows 7/8/8.1/10/11, Windows Server 2012 R2/2016/2019, macOS 10.10 - 13, Linux 2.6.32 or later (LTS version only) |
| Warranty Period | 2 years |
| Width (mm) | 56 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
High Performance: Add 4x SATA 3.0 6Gbps ports in one PCIe x2 slot to connect SATA drives (HDD/SSD) to your desktop/server. Supports four SATA drive connections (SATA cables sold separately)ASM1164 Controller: Single-chip design adds 4 SATA 6Gbps ports to a single x2 PCI Express slot, providing a total of 16Gbps bandwidth. Supports Port Multiplier and NCQ (Native Command Queue) Compatibility: Compliant with PCIe 3.0, SATA 3.2, AHCI 1.4 specifications, backward compatible and compatible with older versions. Compatible with Windows 7 and above, macOS 10.10 and above, and Linux 2.6.32 and above. Improved motherboard compatibility with no built-in RAID design. ATA & ATAPI (HDD, SSD, Optical Disc) Compatible Easy Installation: Plug and play interface card for easy setup. Can be used in both full-profile and low-profile PCI slots (full-profile bracket installed, low-profile bracket included). Supports storage management systems such as Storage Spaces (Microsoft), RAID Assistant (macOS), mdraid/mdadm (Linux)
The StarTech.com Advantage: The product of choice for IT professionals for over 30 years. 2-year manufacturer's warranty and lifetime free technical support (Mon-Fri).
Use
Add four SATA 6Gbps drives to your desktop PC or server Manage the drives with a storage management system and configure RAID arrays. Compatible with Storage Spaces (Microsoft), RAID Assistant (macOS), mdraid/mdadm (Linux), etc.Ulasan Produk
