OM3 Fiber Cable: Laser-enabled multimode optical fiber suitable for up to 10 Gigabit Ethernet. Full-duplex multimode fiber optic patch cable with color-coded optical cable connectors (TX/RX) ideal for cabling servers and storage area networks (SANs). High-quality construction: 50/125μm (core/cladding diameter) fiber for reduced susceptibility to electromagnetic interference (EMI). Aramid fiber reinforcement for increased tensile strength and compression resistance. LC-SC connector, UPC polished ceramic ferrules, insertion loss less than 0.3dB
Reliability Rating: Individually signal integrity tested. LSZH jacketing provides low smoke and reduced emission of toxic corrosive gases in case of fire. TIA/EIA compliant fiber core. Excellent signal attenuation loss meets or exceeds industry standards of less than 2.3dB/km. Excellent Compatibility: Supports 1/10/40/100Gbps high density network applications (SAN, data servers, SFP+, QSFP+, etc. for 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, 100GBASE-SR10). Backwards compatible with OM2. Specifications: 1m/Color: Aqua (OM3)/LC-SC UPC/850nm or 1300nm LED/VCSEL/Bandwidth: 2000MHz-km or more at 850nm/Outer Cable Diameter: 2.9mm/Minimum Bend Radius: Static: 3cm, Dynamic: 6cm/Free and unlimited product questions and consultations
Used in 10 Gigabit high-speed network environments General data communications Broadband systems Data applications that require high-speed data transfer

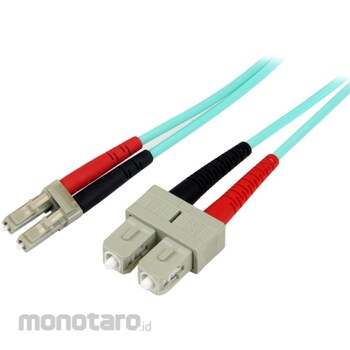

StarTech.com Optical fiber cable/LC-SC/1m/OM3 multimode/50/125μm/2-core/full duplex/100Gb/aramid fiber/low smoke zero halogen/aqua
#Grup produk P113626425
Spesifikasi
| Cable Length (m) | 1 |
|---|---|
| Color | Aqua |
| Connector A | Optical fiber (L, 2 cores) |
| Connector B | Optical fiber (S, 2 cores) |
| Height (mm) | 10 |
| Mass (g) | 26 |
| Operating Humidity Range (%RH) | 0~90 |
| Operating Temperature Range (°C) | -20~60 |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Specification | *Cable jacket flame retardant standard: LSZH rated *Fiber size: 50/125 *Maximum data transfer rate: 100Gbps *Communication speed: 1Gbps, 10Gbps, 40Gbps, 100Gbps *Fiber classification: OM3 *Fiber type: multimode *Wavelength: 850nm |
| Storage Temperature (°C) | -20~60 |
| Width (mm) | 25 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
OM3 Fiber Cable: Laser-enabled multimode optical fiber suitable for up to 10 Gigabit Ethernet. Full-duplex multimode fiber optic patch cable with color-coded optical cable connectors (TX/RX) ideal for cabling servers and storage area networks (SANs). High-quality construction: 50/125μm (core/cladding diameter) fiber for reduced susceptibility to electromagnetic interference (EMI). Aramid fiber reinforcement for increased tensile strength and compression resistance. LC-SC connector, UPC polished ceramic ferrules, insertion loss less than 0.3dBReliability Rating: Individually signal integrity tested. LSZH jacketing provides low smoke and reduced emission of toxic corrosive gases in case of fire. TIA/EIA compliant fiber core. Excellent signal attenuation loss meets or exceeds industry standards of less than 2.3dB/km. Excellent Compatibility: Supports 1/10/40/100Gbps high density network applications (SAN, data servers, SFP+, QSFP+, etc. for 1000BASE-SX, 10GBASE-SR, 40GBASE-SR4, 100GBASE-SR10). Backwards compatible with OM2. Specifications: 1m/Color: Aqua (OM3)/LC-SC UPC/850nm or 1300nm LED/VCSEL/Bandwidth: 2000MHz-km or more at 850nm/Outer Cable Diameter: 2.9mm/Minimum Bend Radius: Static: 3cm, Dynamic: 6cm/Free and unlimited product questions and consultations
Use
Used in 10 Gigabit high-speed network environments General data communications Broadband systems Data applications that require high-speed data transferUlasan Produk
