*Not waterproof or dustproof. Depending on the usage environment, take measures against rain and dust, such as placing it in a dustproof and waterproof box.
*Avoid connecting load devices near the same terminal block or outlet. Load devices that tend to generate power supply noise can affect communication.
*Do not connect to a backup power supply (such as an uninterruptible power supply (UPS)).
*Communication may be affected depending on the power line wiring configuration and breaker specifications.

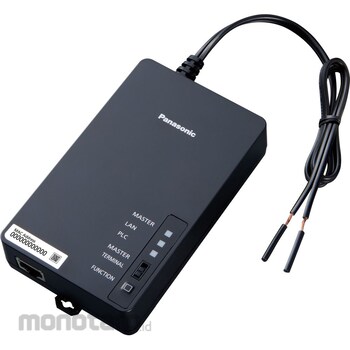

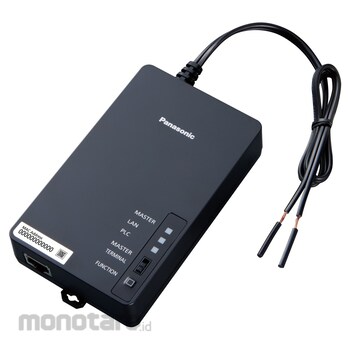

Panasonic Nessum(TM) compatible PLC adapter (LAN conversion) (AC100V to 242V)
#Grup produk P113624287
Spesifikasi
| Access Method | (PLC)CSMA/CA,(LAN)CSMA/CD |
|---|---|
| Applicable Standard | [PLC] IEEE1901-2020, ITU-T G.9905 nessum(TM) method (multi-hop version) |
| Cable Length (m) | (AC)500 |
| Communication Distance (m) | (between products) approx. 200 |
| Communication Speed | 240Mbps(PHY) |
| Frequency Used (MHz) | 2~28 |
| Mass (g) | About 145 |
| Modulation Method | Wavelet OFDM(2PAM~16PAM) |
| Operating Temperature Range (°C) | -20~+60 |
| Outer Dimensions, Width W x Depth D x Height H (mm) | 72x30x122 (excluding protrusions) |
| Power Consumption (W) | 2.3 or less |
| Power Supply | Terminal block mounting type |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Frequency (Hz) | 50/60 |
| Rated Voltage | AC100V~242V |
| Security | AES 128 bit encryption |
| Specification | [Maximum number of hops] 10 |
| Standard | [LAN] IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), MDI/MDI-X automatic detection, automatic negotiation |
| Where to Use | Outdoor (inside the box) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
*Not waterproof or dustproof. Depending on the usage environment, take measures against rain and dust, such as placing it in a dustproof and waterproof box.*Avoid connecting load devices near the same terminal block or outlet. Load devices that tend to generate power supply noise can affect communication.
*Do not connect to a backup power supply (such as an uninterruptible power supply (UPS)).
*Communication may be affected depending on the power line wiring configuration and breaker specifications.
