*Under the Radio Law, it is prohibited to use indoor products outdoors.
* Indoor: When used inside a building * Outdoor: When using wiring outside the building (e.g., communication between the main house and a detached building)
*Not waterproof or dustproof.
*Cannot be connected to nessum TM devices made by other companies.
*Do not install near power lines or high voltage areas.
*Please avoid connecting load devices to the same terminal block or outlet. Load devices that are prone to generating power noise will affect communication.
*Do not connect to a backup power supply (such as an uninterruptible power supply (UPS)).
*Please use a LAN cable of Cat 5e or higher for PoE power supply.

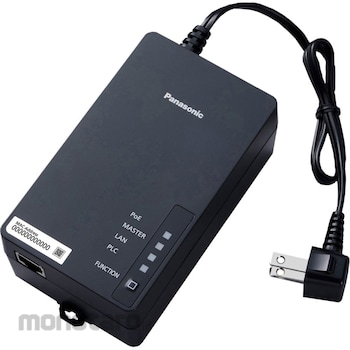

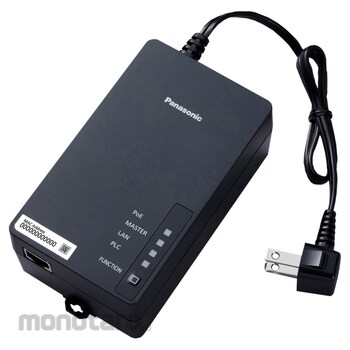

Panasonic Nessum Compatible PLC Adapter (PoE Power Supply) (LAN Conversion) (AC100V)
#Grup produk P113624223
Spesifikasi
| Access Method | CSMA/CA,CSMA/CD |
|---|---|
| Applicable Standard | IEEE1901-2020, ITU-T G.9905, nessumTM <sup>TM</sup> method (multi-hop version) |
| Cable Length (m) | About 500 |
| Color | Black |
| Communication Speed | 240 Mbps (PHY) |
| Mass (g) | About 220 |
| Operating Temperature Range (°C) | -20 ~ +50 |
| Outer Dimensions, Width W x Depth D x Height H (mm) | 72 x 50 x 122 (excluding protrusions) |
| Output Power (W) | PoE: up to 15.4 |
| Power Consumption (W) | 23 or less |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Rated Frequency (Hz) | 50/60 |
| Rated Voltage (V) | AC 100 |
| Relative Humidity | 30% to 85% RH (no condensation) |
| Security | AES 128 bit encryption |
| Specification | *Maximum number of hops: 10*Power connection specifications: Outlet type |
| Standard | IEEE802.3 (10BASE-T), IEEE802.3u (100BASE-TX), IEEE802.3af, MDI/MDI-X auto-detection, auto-negotiation |
| Warranty Period | 1 year from date of purchase |
| Where to Use | Outdoors |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Warning
*Under the Radio Law, it is prohibited to use indoor products outdoors.* Indoor: When used inside a building * Outdoor: When using wiring outside the building (e.g., communication between the main house and a detached building)
*Not waterproof or dustproof.
*Cannot be connected to nessum TM devices made by other companies.
*Do not install near power lines or high voltage areas.
*Please avoid connecting load devices to the same terminal block or outlet. Load devices that are prone to generating power noise will affect communication.
*Do not connect to a backup power supply (such as an uninterruptible power supply (UPS)).
*Please use a LAN cable of Cat 5e or higher for PoE power supply.
