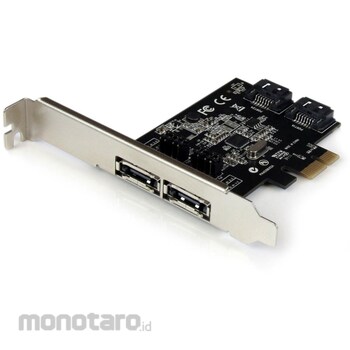

StarTech.com External eSATA 2 port / internal SATA 2 port expansion PCI Experss card Port multiplier compatible Port can be switched with jumper
#Grup produk P113592960
Spesifikasi
| Height (cm) | 2 |
|---|---|
| Humidity (% RH) | 5~85 |
| Length (cm) | 12.1 |
| Mass (g) | 48 |
| Number of Ports | 2 |
| Operating Temperature (°C) | 0~50 |
| Storage Temperature (°C) | -20~60 |
| Width (mm) | 92 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Informasi Produk
Description
Expand your storage capacity: 2-port PCIe SATA, eSATA controller card that supports two internal SATA or external (eSATA) drives via PCI Express. A cost-effective solution for expanding system storage capacity
Built-in ASM1061 Controller: SATA/eSATA controller card with dedicated chipset that can expand two switchable SATA/eSATA 6Gbps ports via one PCIe x1 slot. Supports FIS-based port multiplier (PM), command-based switching, NCQ, ATA/ATAPI commands Wide compatibility: Supports Windows and standard SATA, eSATA SSD (Solid State Drive), HDD (Hard Drive). Supports SATA 3.0 (6Gbps) or earlier versions. PCI Express 2.0 compliant
Easy setup: 2-port SATA/eSATA controller card that plugs into any standard or low-profile PCIe slot. Compatible with PCIe x1, x4, x8, x16 slots. Standard profile (pre-installed) & low profile bracket, 7-pin SATA cable included
StarTech.com Advantage: Over 30 years of products for IT professionals. Free and unlimited support for questions and consultations about products by manufacturers
Upgrade your old PCI Express bus system to a system that can take advantage of high-speed SATA drives that support 6Gbps Add an internal SATA port to your computer system and connect it to your storage or optical drive Add a SATA port to a single PCI Express slot. Can be changed to internal port or external port according to system requirements and usage changes
* The port multiplier function is not supported on Mac OS.
Built-in ASM1061 Controller: SATA/eSATA controller card with dedicated chipset that can expand two switchable SATA/eSATA 6Gbps ports via one PCIe x1 slot. Supports FIS-based port multiplier (PM), command-based switching, NCQ, ATA/ATAPI commands Wide compatibility: Supports Windows and standard SATA, eSATA SSD (Solid State Drive), HDD (Hard Drive). Supports SATA 3.0 (6Gbps) or earlier versions. PCI Express 2.0 compliant
Easy setup: 2-port SATA/eSATA controller card that plugs into any standard or low-profile PCIe slot. Compatible with PCIe x1, x4, x8, x16 slots. Standard profile (pre-installed) & low profile bracket, 7-pin SATA cable included
StarTech.com Advantage: Over 30 years of products for IT professionals. Free and unlimited support for questions and consultations about products by manufacturers
Upgrade your old PCI Express bus system to a system that can take advantage of high-speed SATA drives that support 6Gbps Add an internal SATA port to your computer system and connect it to your storage or optical drive Add a SATA port to a single PCI Express slot. Can be changed to internal port or external port according to system requirements and usage changes
* The port multiplier function is not supported on Mac OS.
Warning
* The port multiplier function is not supported on Mac OS.Feature
Expand your storage capacity: 2-port PCIe SATA, eSATA controller card that supports two internal SATA or external (eSATA) drives via PCI Express. A cost-effective solution for expanding system storage capacityBuilt-in ASM1061 Controller: SATA/eSATA controller card with dedicated chipset that can expand two switchable SATA/eSATA 6Gbps ports via one PCIe x1 slot. Supports FIS-based port multiplier (PM), command-based switching, NCQ, ATA/ATAPI commands Wide compatibility: Supports Windows and standard SATA, eSATA SSD (Solid State Drive), HDD (Hard Drive). Supports SATA 3.0 (6Gbps) or earlier versions. PCI Express 2.0 compliant
Easy setup: 2-port SATA/eSATA controller card that plugs into any standard or low-profile PCIe slot. Compatible with PCIe x1, x4, x8, x16 slots. Standard profile (pre-installed) & low profile bracket, 7-pin SATA cable included
StarTech.com Advantage: Over 30 years of products for IT professionals. Free and unlimited support for questions and consultations about products by manufacturers
Use
Upgrade your old PCI Express bus system to a system that can take advantage of high-speed SATA drives that support 6Gbps Add an internal SATA port to your computer system and connect it to your storage or optical drive Add a SATA port to a single PCI Express slot. Can be changed to internal port or external port according to system requirements and usage changesUlasan Produk
