High-speed 10GbE network available (10x speed)
Multi-Gigabit NIC (compatible with 802.3bz) that supports 10G, 5G, 2.5G, and 1G. Achieve 5GbE networking even with existing Cat5e/Cat6 cables (easily achieve 5x speeds).
Low-profile bracket included (can also be installed in slim PCs)
Supports Windows Server (Windows Server 2019/2016)
Equipped with Wake on LAN function
Jumbo Frame 16K support

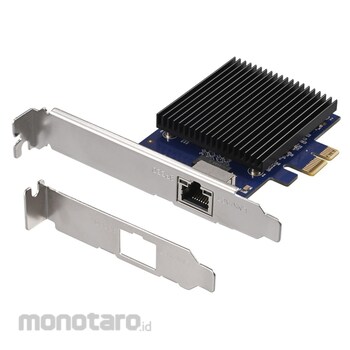

Buffalo 10GbE PCI Express LAN card
#Grup produk P113554702
Spesifikasi
| Access Method | CSMA/CD |
|---|---|
| Connector Shape | RJ-45 type 8-pole connector |
| Encoding method | Transmission path: Manchester coding (10BASE-T), 4B5B/MLT-3 (100BASE-TX), 8B1Q4/4D-PAM5 (1000BASE-T), PAM16 (5G/2.5GBASE-T), DSQ128 (10GBASE-T) |
| Included Accessories | Manual, low profile bracket, warranty card |
| Mass (g) | Approx. 75 (with standard bracket cover) |
| Maximum Power Consumption (W) | 2.5 |
| Number of Ports | 1 port (AUTO-MDIX compatible) |
| Operating Environment | Temperature: 0 to 55°C, Humidity: 10 to 85% (no condensation) |
| Outer dimensions, Width W x Height H x Depth D (mm) | 87 x 16 x 68 (bracket not included) |
| Power Input (V) | 3.3 (Powered by PCI Express bus) |
| Specification | JumboFrame: 4,088/9,014/16,128 Bytes (Header: 14B included, FCS: 4B excluded) |
| Standard | IEEE802.3an/802.3bz/802.3ab/802.3u/802.3i compliant |
| Suitable Models | Windows PC equipped with PCI Express Gen4.0 *Transfer speeds will be reduced if installed on a PCI Express version earlier than 3.0. |
| Transmission Speed | 10Mbps (10BASE-T)<br>100Mbps(100BASE-TX)<br>1000Mbps(1000BASE-T)<br>2.5Gbps(2.5GBASE-T)<br>5Gbps(5GBASE-T)<br>10Gbps(10GBASE-T) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
High-speed 10GbE network available (10x speed)Multi-Gigabit NIC (compatible with 802.3bz) that supports 10G, 5G, 2.5G, and 1G. Achieve 5GbE networking even with existing Cat5e/Cat6 cables (easily achieve 5x speeds).
Low-profile bracket included (can also be installed in slim PCs)
Supports Windows Server (Windows Server 2019/2016)
Equipped with Wake on LAN function
Jumbo Frame 16K support
