This model inherits the vibration and shock resistance characteristics of the proven LG100 series, but with a slimmer body size. The cross-sectional area is approximately 1/5 that of the LG100-110.
This is a high-precision gauge head that can be used in-line or in a measuring room.
Repeatability (2σ) and narrow-range accuracy are guaranteed across the entire measurement range.
It has a sliding durability of over 100 million times*1 and uses highly oil-resistant materials to achieve a protection rating of IP67G.
*1 Can be connected to a small counter (EJ counter) suitable for in-line or device integration to obtain actual values based on manufacturer testing, and a multi-function counter (EH counter) *2 suitable for use in a measurement room.
*2 Conversion plug required

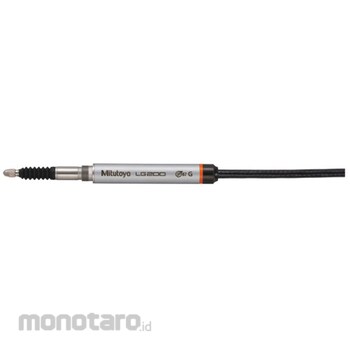

Mitutoyo Linear Gauge (542-187)
#Grup produk P113547748
Spesifikasi
| Indication accuracy | 1.5+L/50μm L=Arbitrary measurement length (20°C) |
|---|---|
| Maximum Response Speed (mm/s) | 1500 |
| Measuring Force (N) | Maximum: (horizontal position) 0.75, (vertical position) 0.8, (reverse position) 0.7 |
| Measuring Range (mm) | 10 |
| Mitutoyo Product No. | 542-187 |
| Protection Class | IP67G |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Structure (Bearing) | Linear ball bearing |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification*Maximum edge-to-edge width: 500ns *Measuring unit: Optical transmission linear encoder
