Optical media converter for 10/100 TX-100FX Multimode optical fiber cable enables long-distance transmission of 2 km Supports a wide operating temperature range and realizes long-term MTBF
Equipped with automatic MDI / MDI-X detection function and auto-negotiation function at LAN cable port Equipped with far-end fault function that indicates that a link failure has occurred at the optical fiber port Equipped with LFPT function to inform You can be mounted on a DIN rail as standard. Compact, lightweight, low power consumption type * Power supply (input voltage DC + 4.5V to + 50V) is compatible with DC power supply.
An AC power adapter can be supplied, but it must be prepared separately.

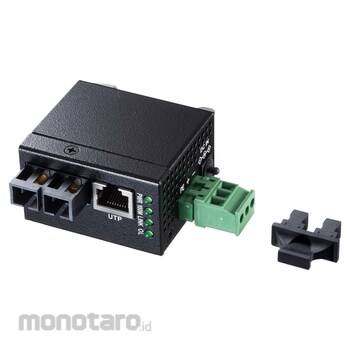

SANWA SUPPLY Optical media converter
#Grup produk P113508244
Spesifikasi
| Applicable Standard | IEEE802.3 / u compliant |
|---|---|
| Connector Shape | SC connector x 2-RJ-45 connector x 1 |
| Data Transfer Rate | 10(14880pps)/100(148800pps) |
| Dimensions, Width W x Depth D x Height H (mm) | 34x49x56 |
| Emission waveLength (N.m) | 1310 |
| Included Accessories | DIN rail bracket |
| Input Terminal | (DC power supply terminal specifications) + DCIN terminal, -DCIN terminal, PE ground terminal |
| Light Output | -20dBm (minimum) ~ -14dBm (maximum) |
| Mass (g) | 131 |
| Operating Humidity (%) | 10~90 |
| Operating Temperature Range (°C) | -40 to 70 |
| Power Supply Voltage (V) | DC4.5~50 |
| Power cable | (DC power terminal specifications) 24 to 12 AWG |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Receiving Sensitivity | -31dBm |
| Transmission distance (m) | 2000 (maximum) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification(DC power supply terminal specification) Screw terminal block 3P terminal / (DC input specification) TB-3P / DC jack
