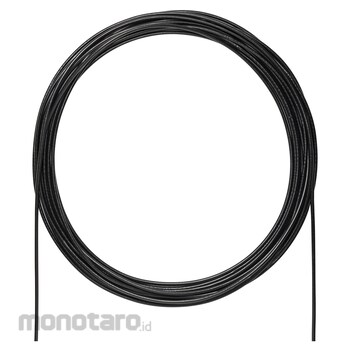

This is a self-made category 6A outdoor LAN cable. (connector not included)
The cable structure has a PE (polyethylene) outer sheath and a PVC (polyvinyl chloride) inner sheath, providing excellent water resistance (IP68 waterproofing) and weather resistance.
With a working temperature range of -40°C to 80°C, it can also be used outdoors.
It also fully supports 10 Gigabit Ethernet, so it can be used for ultra-high-speed networks in the future.
Achieves a transmission bandwidth 5.0 times that of Enhanced Category 5 and 2.0 times that of Category 6! A high-performance LAN cable that prevents errors with a generous transmission characteristic of 500MHz.
A cross-shaped interposition is included in the cable to prevent electromagnetic wave interference between signals and achieve significant stability in electrical characteristics.
SANWA SUPPLY LAN cable
#Grup produk P113496347
Sebelum PPN:
Rp5.999.900 - Rp13.999.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Applicable Standard | Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) |
|---|---|
| Cable | Structure: UTP, conductor structure: single wire |
| Color | Black |
| Communication Speed | 10Gbps |
| Conform to | Environment (equipment): optical line (FTTH ultra-high speed optical internet), cable TV line (CATV modem), ADSL line (ADSL modem), network line (network equipment), digital TV, digital audio, hard disk recorder (RJ-45 port) model), INS64 (30 m or less) |
| Connection | Straight connection |
| Connector | x |
| Frequency Characteristic | 500MHz |
| Number of Cores | 8 cores (4P) |
| Power Supply Method | PoE compatible |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Standard | Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compatible |
| Structure | Single wire |
| Terminal Connection | Straight connection |
| Type | Standard (Round) |
| Where to Use | outdoor/do-it-yourself |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationColor wiring: TIA/EIA-568B, Self-made connector: ADT-6ARJFS Category 6A RJ-45 shield connector (Processing is required while cutting the cable jacket)
