The cable structure has a PE (polyethylene) outer sheath and a PVC (polyvinyl chloride) inner sheath, providing excellent water resistance (IP68 waterproofing) and weather resistance.
With a working temperature range of -40°C to 80°C, it can also be used outdoors.
It also fully supports 10 Gigabit Ethernet, so it can be used for high-speed networks in the future.
A transmission band of 500MHz, which is 5.0 times that of Enhanced Category 5 and 2.0 times that of Category 6! It is a Category 6A LAN cable that prevents errors with extra transmission characteristics.
A cross-shaped interposition is included in the cable to prevent electromagnetic wave interference between signals and achieve significant stability in electrical characteristics.

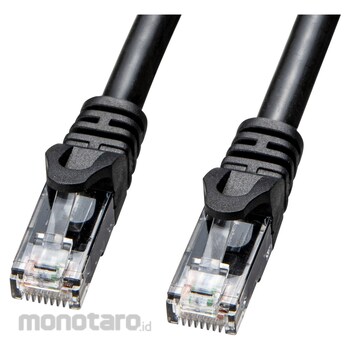

SANWA SUPPLY LAN cable
#Grup produk P113496329
Spesifikasi
| Applicable Standard | Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX), Category 3 (10BASE-T) compatible |
|---|---|
| Cable | Structure: UTP, Conductor structure: Stranded wire |
| Cable Size (AWG) | 24 |
| Color | Black |
| Communication Speed | 10Gbps |
| Connection | Straight connection |
| Connector | O |
| Connector Shape | With RJ-45 connector claw breakage prevention cover |
| Frequency Characteristic | 500MHz |
| Function | Claw break prevention connector: No, Claw break prevention cover: Yes |
| Locking Clip-tab Protection | ○ |
| Number of Cores | 8 cores (4P) |
| ROHS Directive (Corresponding to 10 Substances) | Correspondence |
| Standard | CAT6A |
| Structure | Stranded wire |
| Terminal Connection | Straight connection |
| Type | Standard (Round) |
| Where to Use | For outdoor use |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationSlim connector: none, color wiring: TIA/EIA-568B, inspection: 100% continuity test
