Fully compatible with next-generation 40GBASE-T Next-generation Ethernet 40GBASE-T (40Gbps) and 25GBASE-T (25Gbps) are fully supported.
Clear transmission band 2000MHz Clears 2000MHz, which is 20 times the transmission band of enhanced category 5 and 8 times the transmission band of category 6.
The wider the band, the higher the speed transmission becomes, and the more effective it is to prevent data errors.
Stop transmission error The separation shield structure that shields each pair and stops the transmission error by keeping the distance between the pairs.
Flat type of 2.8 mm x 8.5 mm Thin 2.8 mm flat type that can be wired under a carpet or in a narrow gap.
In addition, since the inside of the cable is molded, it is difficult for the cable to return and the performance characteristics do not deteriorate.
With a claw breakage prevention cover A PVC claw breakage prevention cover with excellent elasticity is used to prevent the claws of the connector from breaking.
Gold-plated connector A gold-plated shield plug that suppresses the generation of rust and oxide film and guarantees high-precision contact is used.

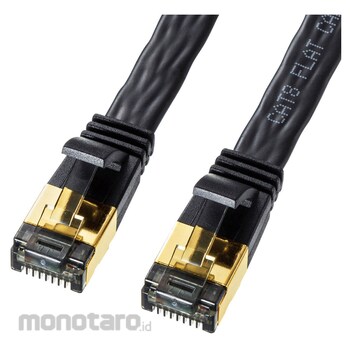

SANWA SUPPLY LAN Cable
#Grup produk P113495843
Spesifikasi
| Applicable Transmission Band | Category 8 (40GBASE-T), Category 7A / Category 7 (10GBASE-T), Category 6A (10GBASE-T), Category 6 (1000BASE-TX), Category 5e (1000BASE-T), Category 5 (100BASE-TX) , Category 3 (10BASE-T) compatible |
|---|---|
| Color | Black |
| Connector | Yes |
| Connector Shape | RJ-45 shield connector (with claw break prevention cover) |
| Flame retardance | UL1581 (ULVW-1) vertical combustion test |
| Locking Clip-tab Protection | Yes |
| Logarithm (P) | 4 |
| Standard | CAT8 |
| Structure | Twisted wire (stranded wire) |
| Suitable Models | ADSL line (ADSL modem) / Cable TV line (CATV modem) / Optical line (FTTH ultra-high-speed optical Internet) / Digital TV / Hard disk recorder (model with RJ-45 port) / INS64 (30m or less) compatible |
| Terminal Connection | Straight connection |
| Transmission Band (MHz) | 2000 |
| Transmission Speed (Gbps) | 40/25 |
| Type of Cable | Flat |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
SpecificationWith slim connector / With claw breakage prevention cover / 100% continuity inspection / Color wiring: T568B (TIA / EIA-B) / Noise resistance: ◯
