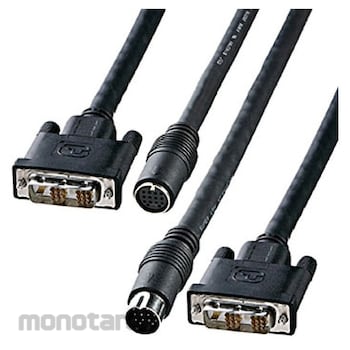

SANWA SUPPLY DVI construction wiring cable

A cable that connects a computer with a DVI (29pin or 24pin) connector to a digital liquid crystal display with a DVI (29pin or 24pin) connector.
For single link mode.
Cable for construction wiring.
It is a set of two cables that can be relayed with a removable DIN connector (diameter 20 mm) so that it can be easily passed through the pipe.
A cable for long-distance transmission.
A large-diameter cable with a cable outer diameter of 9.8 mm is used to reduce signal loss even for long-distance transmission of 10 m.
It has a triple shield structure. (TMDS signal line only)
From the center of the cable, "aluminum shield-> aluminum shield-> braided shield" is applied to triple shield processing to protect important data from noise.
It is a twisted pair cable. (TMDS signal line only)
A twisted pair wire that is resistant to noise is used by twisting two core wires at a time.
Uses gold-plated pins.
Gold-plated to resist rust and prevent signal deterioration due to aging.
* Cannot be used in dual link mode or analog mode.
* Even if you use a conversion adapter, you cannot connect to a mini D-sub 15pin device.
