The current display function allows you to check the equipment's usage status. The measurement area is divided into three blocks: A block, B block, and A+B block (total value). Instantaneous current values can be checked by pressing the select switch. Peak current values can be displayed by pressing the PEAK button. Two 20A circuit protectors are installed, with a maximum of 20A for each system. Total capacity is up to 30A. Easily installs in a 19-inch server rack. Mounting holes are provided on the tap body, allowing direct installation with screws. Optional L-shaped mounting brackets can be used to attach to a mounting frame. A power indicator LED lamp is included as standard. A locking outlet prevents accidental disconnection. A 3m power cord and plug are included as standard.
* We do not deliver to private homes (detached houses / apartments). * Mounting screws are not included. * L-shaped metal fittings are sold separately. (TAP-SVSET list price \ 2) * Cannot be used outside Japan.

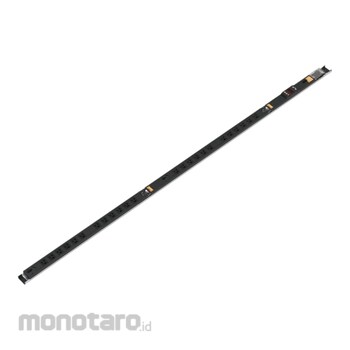

SANWA SUPPLY 19-inch server rack outlet
#Grup produk P113455067
Spesifikasi
| Allowable Current (A) | 36 |
|---|---|
| Ambient Humidity (%) | 85 or less (no freezing or condensation) |
| Ambient Temperature (°C) | 0-40 (provided that the average value for 24 hours does not exceed 35) |
| Applicable Regions | Only in Japan |
| Applicable Standard | Compliant with the Electrical Appliance and Material Safety Law (PSE) technical standards |
| Chip breaker | Equipped with circuit protector 20A x 2 up to a total of 30A |
| Color | [Outlet] Black, [Code] Black |
| Conductor Size (mm²) | 5.5 |
| Crimp Terminal | Round crimp terminal R2-5 (JIS C2805 equivalent) |
| Interval (mm) | [Outlet] 40 |
| Outlet Shape | 3P |
| Plug | Parallel type |
| Plug Shape | Hook type L5-30P (lock type 125V30A) |
| Power Cable (m) | 3 |
| Rated Capacity | 125V, 30A (up to 3000W in total) |
| Type | Retaining |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
Specification[Double structure] Yes
