Sebelum PPN:
Rp6.099.900 - Rp6.499.900
Ketersediaan:
Periksa Metode Pembayaran dan Estimasi pengiriman
Spesifikasi
| Allowable Current (A) | 36 |
|---|---|
| Ambient Humidity (%) | 85 or less (no freezing or condensation) |
| Ambient Temperature (°C) | -5 to 40 (however, the average value for 24 hours shall not exceed 35) |
| Applicable Regions | Only in Japan |
| Applicable Standard | Compliant with the Electrical Appliance and Material Safety Law (PSE) technical standards |
| Cable Length (m) | 3 |
| Cable Type | VCTF3.5 (3 cores) |
| Chip breaker | On-board circuit protector |
| Color | [Outlet] Black, [Code] Black |
| Conductor Size (mm²) | 5.5 |
| Crimp Terminal | Round crimp terminal R2-5 (JIS C2805 equivalent) |
| Included Accessories | Body slide rail bracket x 3 |
| Interval (mm) | [Outlet] 40 |
| Outlet Shape | 3P |
| Outlet Type | 3P |
| Plug | Parallel type |
| Power Cable (m) | 3 |
| Rated Capacity | 125V, 30A (up to 3000W in total) |
| Type | Retaining |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Informasi Produk
Description

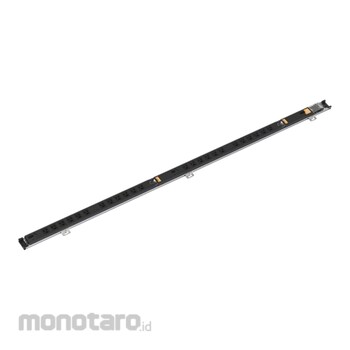

Easily install into a 19-inch server rack using three mounting methods. Can be attached to a side frame using the included mounting brackets. Mounting holes are located on the tap body, allowing for direct installation with screws. Can be attached to a mounting frame using optional L-shaped mounting brackets. A power indicator LED is included as standard. A locking socket prevents accidental disconnection. The bottom and sides of the tap body are made of a lightweight, sturdy aluminum body. The terminal block has a transparent cover that allows you to see the wiring status at a glance. A power cord (3m) and plug are included as standard. Two 15A circuit protectors are included to prevent danger from excessive power consumption and overcurrent.
*We do not deliver to private residences (detached houses or apartment buildings). *Installation screws are not included. *L-shaped brackets are sold separately. (TAP-SVSET list price: \2) *The only brackets included are the three brackets for the slide rail of the tap body. *Cannot be used outside of Japan.
*We do not deliver to private residences (detached houses or apartment buildings). *Installation screws are not included. *L-shaped brackets are sold separately. (TAP-SVSET list price: \2) *The only brackets included are the three brackets for the slide rail of the tap body. *Cannot be used outside of Japan.
Feature
Specification[Double structure] Yes
