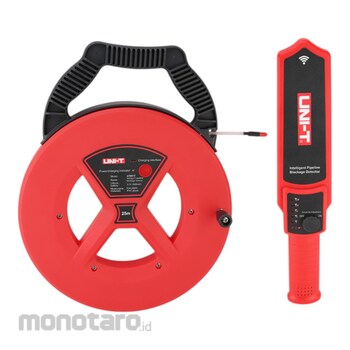

UT661 Series Pipeline Blockage Detectors
The UT661 series pipeline blockage detectors can quickly locate blockages clogging inside pipelines. They are able to detect pipes from a maximum distance of 50cm, the signal wire can be inserted into pipelines up to 25/35m for UT661C/D respectively. UT661 series are easily operable, and can be used to detect steel, iron, and pvc pipes.
UNI-T Pipeline Blockage Detector
#Grup produk P113396922
Spesifikasi
| Battery Duration (hour) | 10 |
|---|---|
| Buzzing Prompt | Yes |
| Charging Current (mA) | 450 to 550 |
| Color | Red and Grey |
| Flash Prompt | Yes |
| Low Battery Indication | Yes |
| Maximum Detection Distance Depth (cm) | 50 |
| Measurable Pipe Material | Plastic pipes, metal pipes |
| Operating Temperature and Humidity | -20°C to 60°C, 1080%RH |
| Receiver | Yes |
| Receiver Battery | Built-in lithium battery (3.7V 1800mAh) |
| Receiver Current | Shutdown current: <2uA, standby current: <40mA Maximum working current: 150~450mA (Distance 1cm) |
| Signal Wire (m) | 25 |
| Sound Output (dB) | >75 (at a distance of 0.5m); >93 (at a distance of 1cm) |
| Transmitter | Yes |
| Transmitter Battery Type | Built-in lithium battery (3.7V 1800mAh) |
| Transmitter Current | Shutdown current: <2uA, working current: 230~310mA |
| Waterproof Grade | Probe waterproof IP67 |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- Certificates: CE, RoHS- The location of the blockage in the pipe can be detected
- Measurable pipe material: plastic pipes, metal pipes
- Maximum detection distance(depth): 50cm
- Buzzing prompt and Flash prompt
