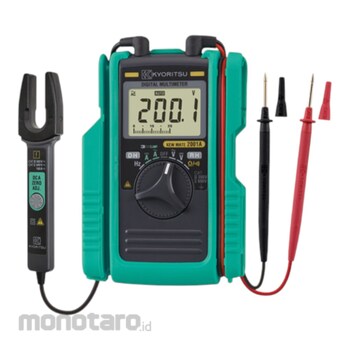

Digital Multimeter with AC/DC Clamp Sensor
- Capable of measuring AC and DC currents with OPEN CLAMP SENSOR 100A
- Cable strength increased with robust cable protection
- Test probe can be fixed to the holster
- Can measure AC/DC current and voltage
- Pocket size and heavy duty design
- Test lead cap to protect from short circuit accident
- The open jaws are thin, perfect to clamp wires even in tight spaces
KYORITSU Multimeter Digital
#Grup produk P113396861
Kondisi Barang:
Authorized Partner
Spesifikasi
| AC Current (A) | 100, ±2%rdg±5dgt (50/60Hz) |
|---|---|
| AC Voltage (V) | 3.400/34.00/340.0/600; (Input Impedance: Approx. 10MΩ); ±1.5%rdg±5dgt [50 to 400Hz] |
| Accessories | R03 (AAA) × 2, Instruction Manual |
| Applicable Standards | IEC 61010-1 CAT III 300V / CAT II 600V Pollution degree 2, IEC 61010-031, IEC 61010-2-032, IEC 61326-1, EN 50581(RoHS) |
| Conductor Size (mm) | Ø10 (Max.) |
| DC Current (A) | 100.0, ±2%rdg±5dgt |
| DC Voltage | 340.0mV/3.400/34.00/340.0/600V, (Input Impedance) |
| Dimensions (LxWxD) (mm) | 128x92x27 |
| Power Source | R03 (AAA)(1.5V) x 2 * Continuous measuring time |
| Resistance (ohm) | 340.0/3.400/34.00/340.0k/3.400/34.00M, ±1%rdg±3dgt (0 to 340k), ±5%rdg±5dgt (3.4M), ±15%rdg±5dgt (34M) |
Pilih jenis produk yang diinginkan
| Nomor SKU | Model Number | Masa Persiapan Barang | Harga | Jumlah |
|---|---|---|---|---|
| Loading... | ||||
Apakah produk dengan spesifikasi yang Anda inginkan belum tersedia? Hubungi tim Layanan Pelanggan kami di sini
Informasi Produk
Description
Feature
- New cable rubber protection- Application examples:
Test probe can be fixced to the holster
DC measurement in solar panels
Measuring current in a Switchboard
Servicing a car
